Century Spring

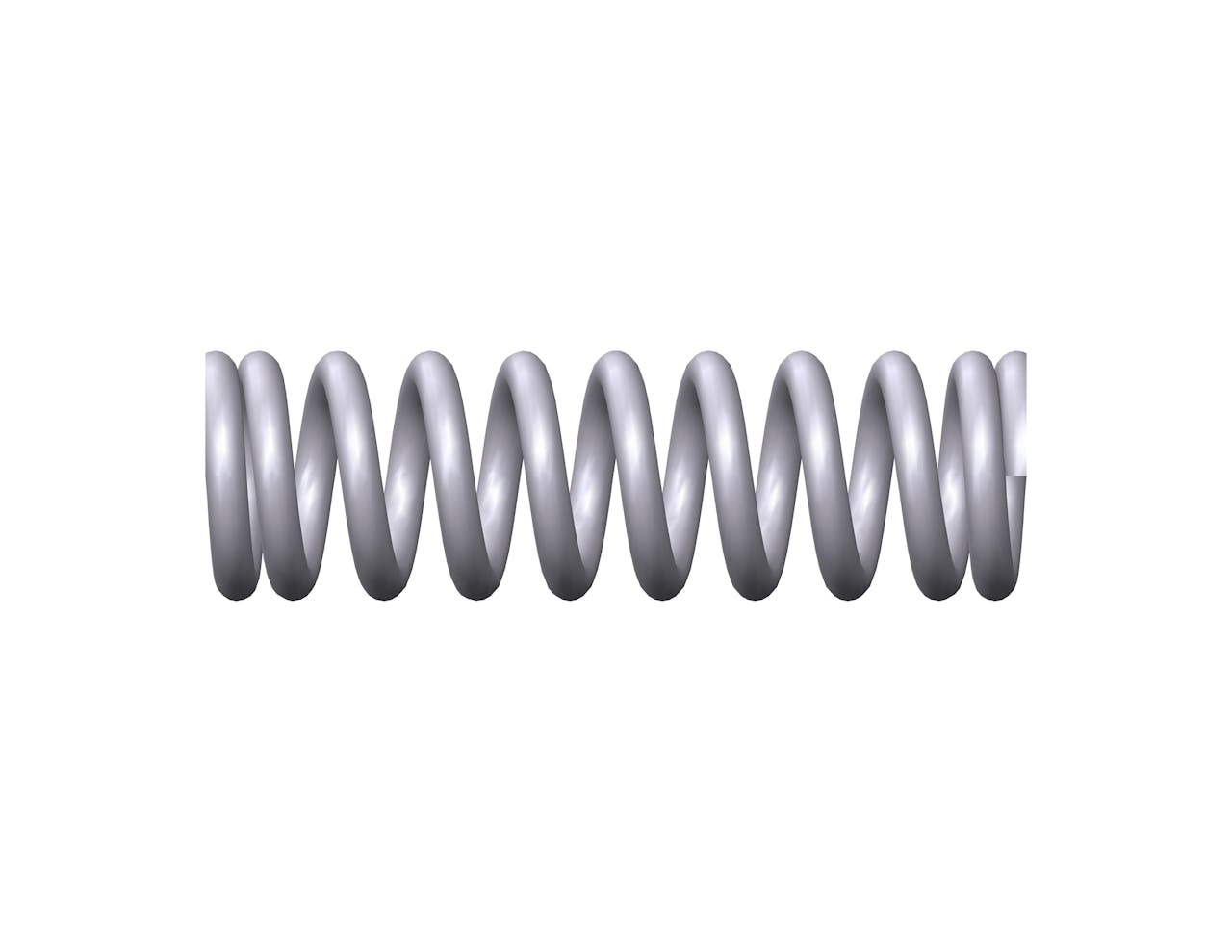

75715SCS - 1.24" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.378", and an I.D. of 0.253".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75715S
Ends Closed & Ground
Finish None
Free Length 1.24 in
Inside Diameter 0.253 in
Material 302/304 Stainless Steel
Outside Diameter 0.378 in
Part Type Metric
Rate 74.108 lbs/in
SKU 75715SCS
Solid Length 0.661 in
Suggested Max Deflection 0.29 in
Suggested Max Load 21.491 lbf
Total Coils 10.5
Wire Diameter 0.0625 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75715S
Ends Closed & Ground
Finish None
Free Length 31.5 mm
Inside Diameter 6.43 mm
Material 302/304 Stainless Steel
Outside Diameter 9.6 mm
Part Type Metric
Rate 12.98 N/mm
SKU 75715SCS
Solid Length 16.79 mm
Suggested Max Deflection 7.37 mm
Suggested Max Load 95.59 N
Total Coils 10.5
Wire Diameter 1.59 mm
The 75715SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.0625" diameter 302/304 stainless steel, the 75715S spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 21.491 lbf without succumbing to fatigue.

We manufacture the 75715S design to provide a compression spring that is 1.24" long at rest and provides a consistent rate of 74.108 lbs/in along its recommended maximum of 0.29" deflection. For best results, your application should fully accommodate the inner (0.253") and outer (0.378") diameters of this spring and be designed for its closed & ground end configuration.
