75697CS - 2.756" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

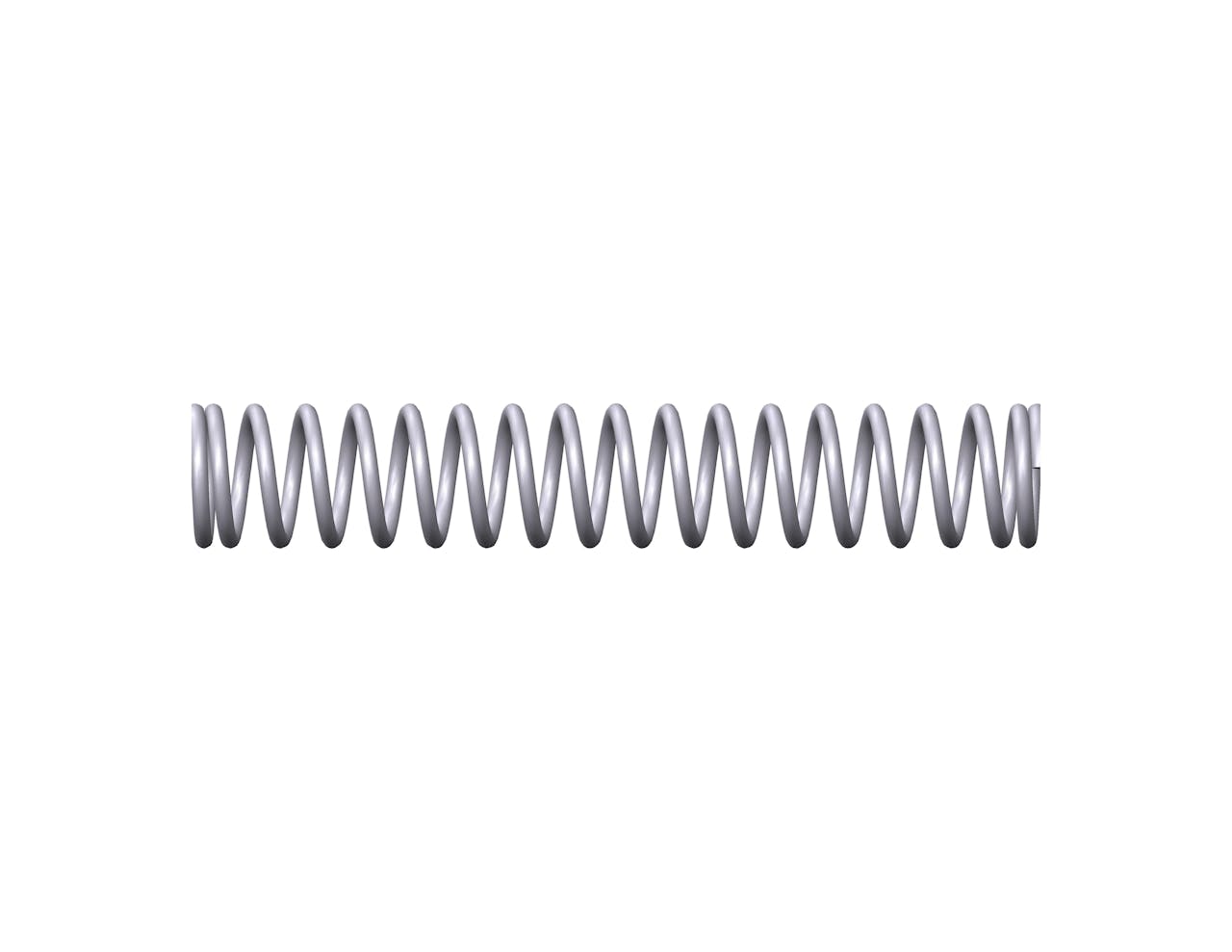

Compression spring manufactured from music wire with 18.46 coils and closed & ground ends. This spring features an O.D. of 0.472", and an I.D. of 0.362".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75697
Ends Closed & Ground
Finish Zinc
Free Length 2.756 in
Inside Diameter 0.362 in
Material Music Wire
Outside Diameter 0.472 in
Part Type Metric
Rate 11.5 lbs/in
SKU 75697CS
Solid Length 1.026 in
Suggested Max Deflection 1.55 in
Suggested Max Load 17.825 lbf
Total Coils 18.46
Wire Diameter 0.055 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75697
Ends Closed & Ground
Finish Zinc
Free Length 70 mm
Inside Diameter 9.19 mm
Material Music Wire
Outside Diameter 11.99 mm
Part Type Metric
Rate 2.01 N/mm
SKU 75697CS
Solid Length 26.06 mm
Suggested Max Deflection 39.37 mm
Suggested Max Load 79.29 N
Total Coils 18.46
Wire Diameter 1.4 mm
The 75697 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75697CS compression spring is designed with a free length of 2.559" total of 17.31 coils, and a rate of 10.3 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75697 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
