Century Spring

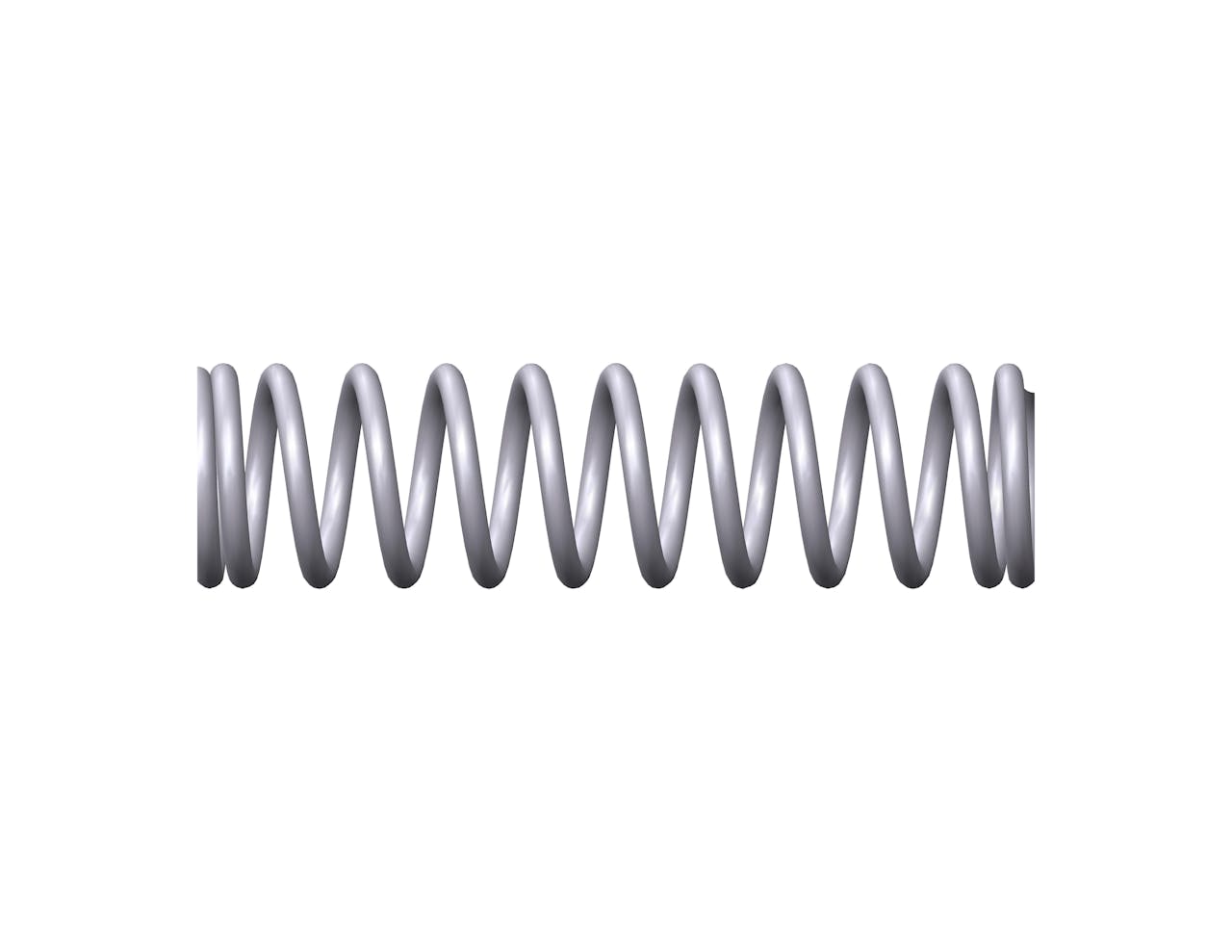

75679SCS - 1.575" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 11.92 coils and closed & ground ends. This spring features an O.D. of 0.425", and an I.D. of 0.323".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75679S
Ends Closed & Ground
Finish None
Free Length 1.575 in
Inside Diameter 0.323 in
Material 302/304 Stainless Steel
Outside Diameter 0.425 in
Part Type Metric
Rate 16.3 lbs/in
SKU 75679SCS
Solid Length 0.617 in
Suggested Max Deflection 0.667 in
Suggested Max Load 10.872 lbf
Total Coils 11.92
Wire Diameter 0.051 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75679S
Ends Closed & Ground
Finish None
Free Length 40.01 mm
Inside Diameter 8.2 mm
Material 302/304 Stainless Steel
Outside Diameter 10.8 mm
Part Type Metric
Rate 2.85 N/mm
SKU 75679SCS
Solid Length 15.67 mm
Suggested Max Deflection 16.94 mm
Suggested Max Load 48.36 N
Total Coils 11.92
Wire Diameter 1.3 mm
The 75679SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.051" diameter 302/304 stainless steel, the 75679S spring design exhibits reliable strength across its 11.92 active coils, withstanding repeated compression cycles with a maximum load of 10.872 lbf without succumbing to fatigue.

We manufacture the 75679S design to provide a compression spring that is 1.575" long at rest and provides a consistent rate of 16.3 lbs/in along its recommended maximum of 0.667" deflection. For best results, your application should fully accommodate the inner (0.323") and outer (0.425") diameters of this spring and be designed for its closed & ground end configuration.
