75629SCS - 0.748" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

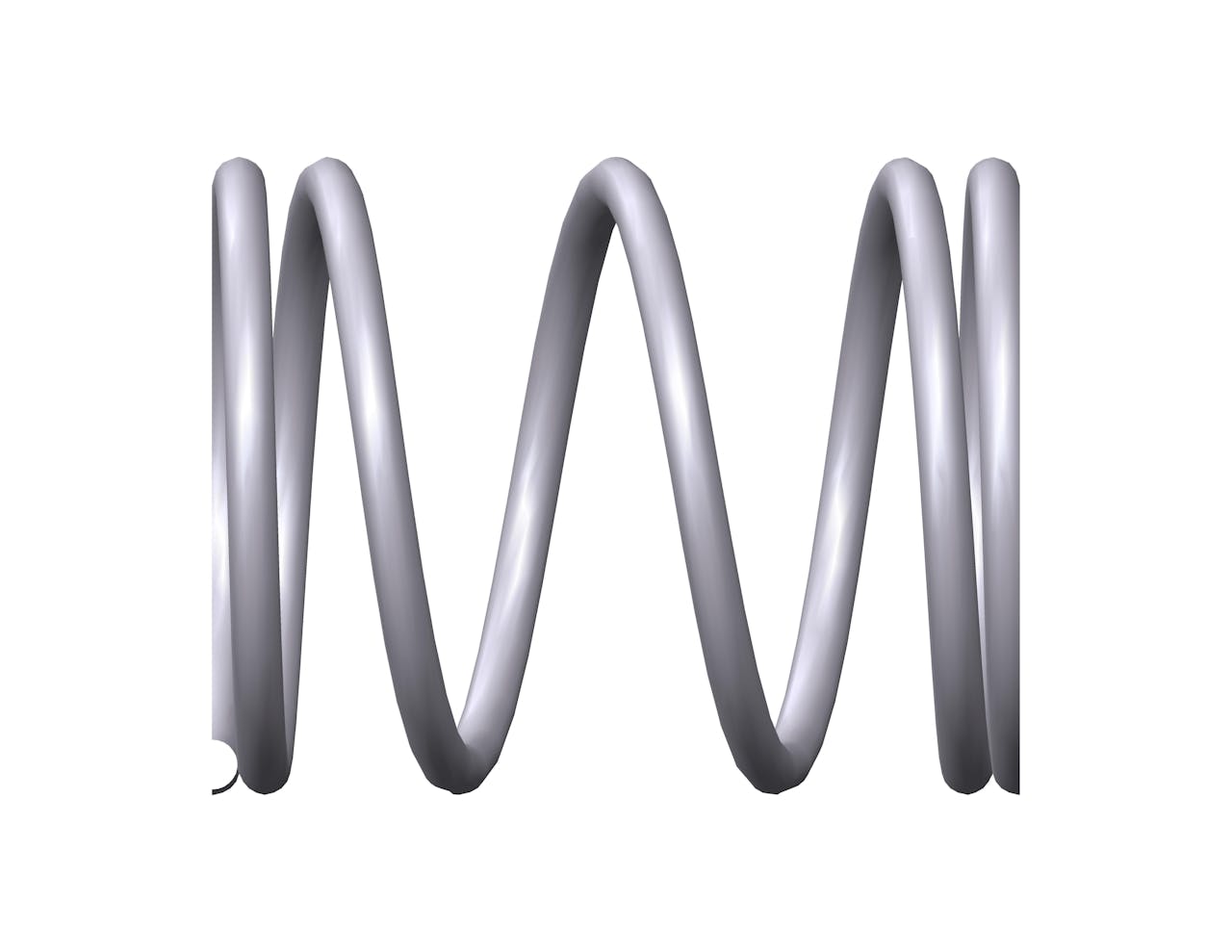

Compression spring manufactured from 302/304 stainless steel with 5.06 coils and closed & ground ends. This spring features an O.D. of 0.591", and an I.D. of 0.497".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75629S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.748 in |
| Inside Diameter | 0.497 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.591 in |
| Part Type | Metric |
| Rate | 12.4 lbs/in |
| SKU | 75629SCS |
| Solid Length | 0.243 in |
| Suggested Max Deflection | 0.498 in |
| Suggested Max Load | 6.175 lbf |
| Total Coils | 5.06 |
| Wire Diameter | 0.047 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75629S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 19 mm |
| Inside Diameter | 12.62 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 15.01 mm |
| Part Type | Metric |
| Rate | 2.17 N/mm |
| SKU | 75629SCS |
| Solid Length | 6.17 mm |
| Suggested Max Deflection | 12.65 mm |
| Suggested Max Load | 27.47 N |
| Total Coils | 5.06 |
| Wire Diameter | 1.19 mm |
The 75629S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 75629SCS compression spring is designed with a free length of 0.748" total of 5.07 coils, and a rate of 14.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75629S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 75629SCS compression spring is designed with a free length of 0.748" total of 5.07 coils, and a rate of 14.8 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75629S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
