75624CS - 2.559" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

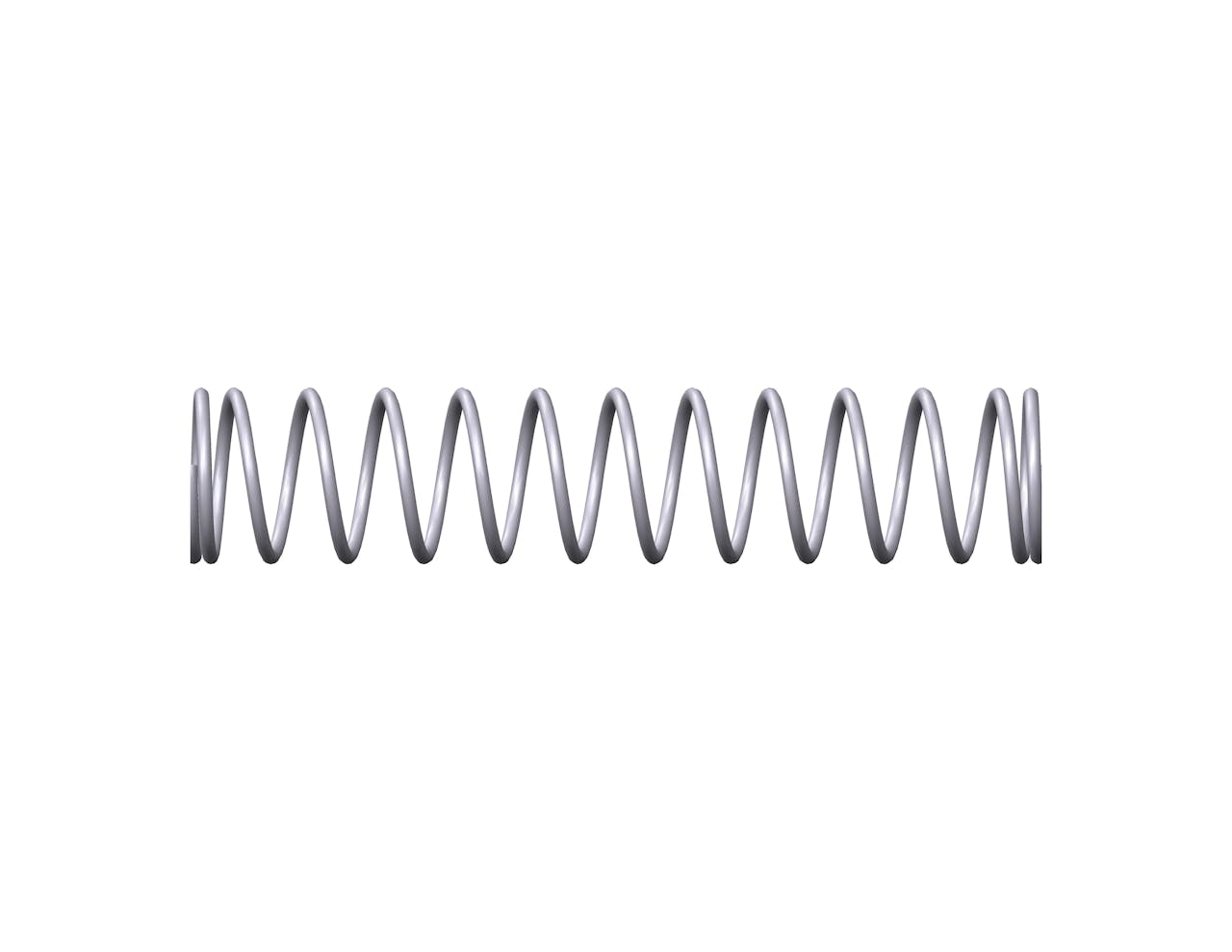

Compression spring manufactured from music wire with 13.54 coils and closed & ground ends. This spring features an O.D. of 0.532", and an I.D. of 0.446".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75624 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 2.559 in |
| Inside Diameter | 0.446 in |
| Material | Music Wire |
| Outside Diameter | 0.532 in |
| Part Type | Metric |
| Rate | 3.8 lbs/in |
| SKU | 75624CS |
| Solid Length | 0.6 in |
| Suggested Max Deflection | 1.959 in |
| Suggested Max Load | 7.444 lbf |
| Total Coils | 13.54 |
| Wire Diameter | 0.043 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75624 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 65 mm |
| Inside Diameter | 11.33 mm |
| Material | Music Wire |
| Outside Diameter | 13.51 mm |
| Part Type | Metric |
| Rate | 0.67 N/mm |
| SKU | 75624CS |
| Solid Length | 15.24 mm |
| Suggested Max Deflection | 49.76 mm |
| Suggested Max Load | 33.11 N |
| Total Coils | 13.54 |
| Wire Diameter | 1.09 mm |
The 75624CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.043" diameter music wire, the 75624 spring design exhibits reliable strength across its 13.54 active coils, withstanding repeated compression cycles with a maximum load of 7.444 lbf without succumbing to fatigue.
We manufacture the 75624 design to provide a compression spring that is 2.559" long at rest and provides a consistent rate of 3.8 lbs/in along its recommended maximum of 1.959" deflection. For best results, your application should fully accommodate the inner (0.446") and outer (0.532") diameters of this spring and be designed for its closed & ground end configuration.
