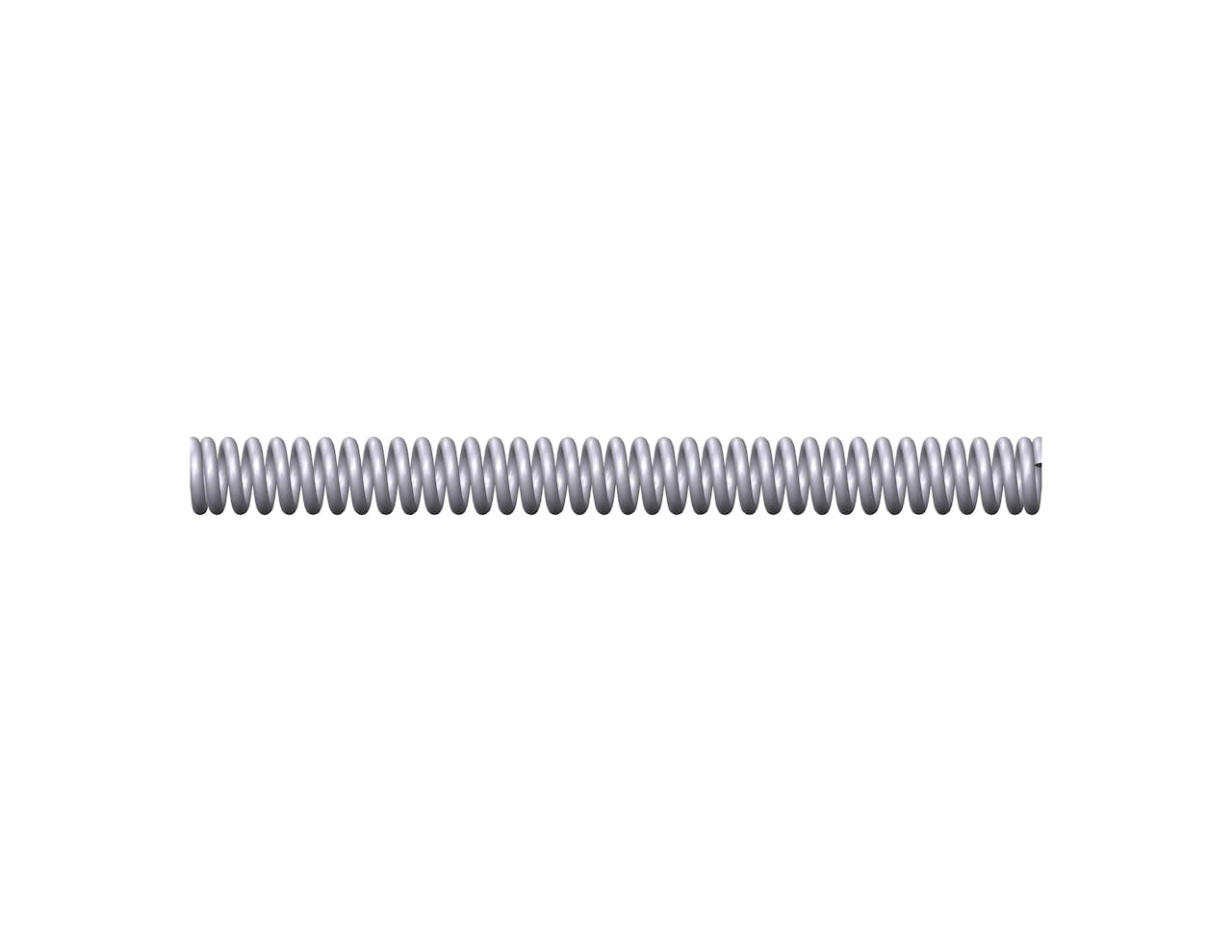

75593CS - 2.559" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 36.39 coils and closed & ground ends. This spring features an O.D. of 0.236", and an I.D. of 0.15".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75593 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 2.559 in |
| Inside Diameter | 0.15 in |
| Material | Music Wire |
| Outside Diameter | 0.236 in |
| Part Type | Metric |
| Rate | 21.43 lbs/in |
| SKU | 75593CS |
| Solid Length | 1.571 in |
| Suggested Max Deflection | 0.777 in |
| Suggested Max Load | 16.651 lbf |
| Total Coils | 36.39 |
| Wire Diameter | 0.043 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75593 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 65 mm |
| Inside Diameter | 3.81 mm |
| Material | Music Wire |
| Outside Diameter | 5.99 mm |
| Part Type | Metric |
| Rate | 3.75 N/mm |
| SKU | 75593CS |
| Solid Length | 39.9 mm |
| Suggested Max Deflection | 19.74 mm |
| Suggested Max Load | 74.06 N |
| Total Coils | 36.39 |
| Wire Diameter | 1.09 mm |
The compression spring 75593CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75593 compression spring design exhibits exceptional tensile strength and resilience.
The 75593 design is manufactured with a free length of 2.559", with an outer diameter of 0.236", an inner diameter of 0.15", and a total of 36.39 coils, expertly designed to deliver consistent compression characteristics including a rate of 21.43 lbs/in.
The 75593CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 75593 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
