Century Spring

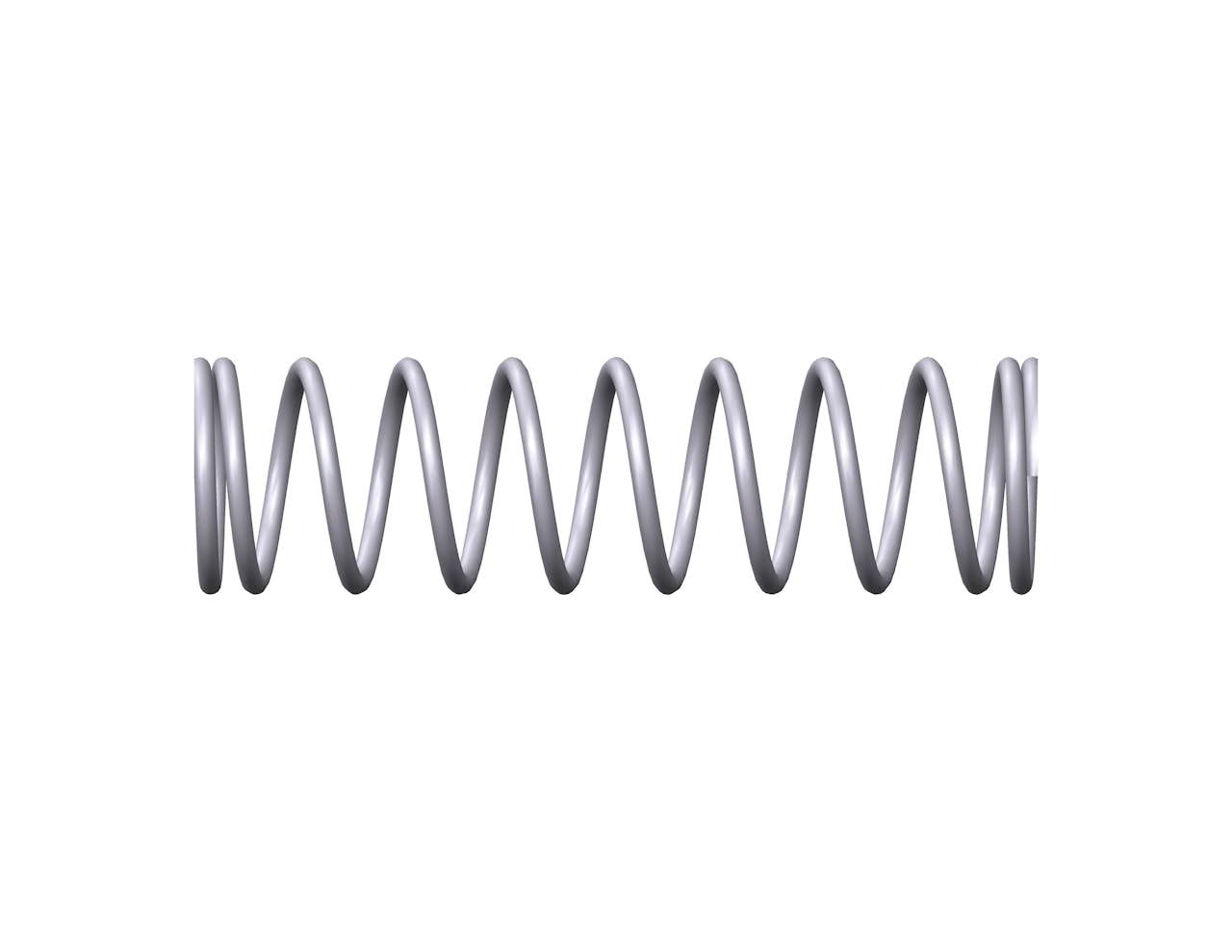

75567CS - 1.535" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.433", and an I.D. of 0.355".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75567
Ends Closed & Ground
Finish Zinc
Free Length 1.535 in
Inside Diameter 0.355 in
Material Music Wire
Outside Diameter 0.433 in
Part Type Metric
Rate 6.948 lbs/in
SKU 75567CS
Solid Length 0.413 in
Suggested Max Deflection 1.091 in
Suggested Max Load 7.58 lbf
Total Coils 10.5
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75567
Ends Closed & Ground
Finish Zinc
Free Length 38.99 mm
Inside Diameter 9.02 mm
Material Music Wire
Outside Diameter 11 mm
Part Type Metric
Rate 1.22 N/mm
SKU 75567CS
Solid Length 10.49 mm
Suggested Max Deflection 27.71 mm
Suggested Max Load 33.72 N
Total Coils 10.5
Wire Diameter 0.99 mm
The 75567CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.039" diameter music wire, the 75567 spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 7.58 lbf without succumbing to fatigue.

We manufacture the 75567 design to provide a compression spring that is 1.535" long at rest and provides a consistent rate of 6.948 lbs/in along its recommended maximum of 1.091" deflection. For best results, your application should fully accommodate the inner (0.355") and outer (0.433") diameters of this spring and be designed for its closed & ground end configuration.
