75564SCS - 2.323" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

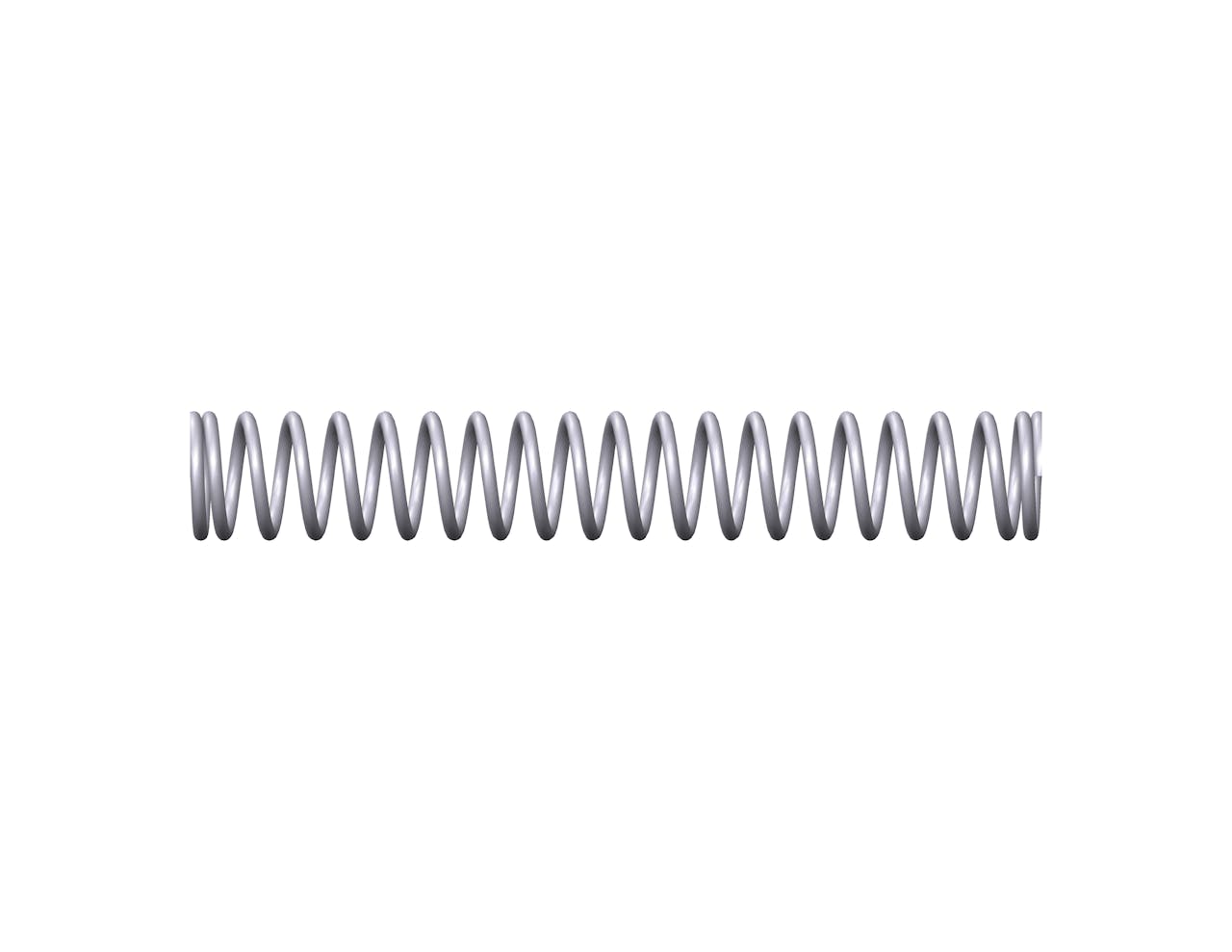

Compression spring manufactured from 302/304 stainless steel with 20.5 coils and closed & ground ends. This spring features an O.D. of 0.354", and an I.D. of 0.276".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75564S
Ends Closed & Ground
Finish None
Free Length 2.323 in
Inside Diameter 0.276 in
Material 302/304 Stainless Steel
Outside Diameter 0.354 in
Part Type Metric
Rate 5.196 lbs/in
SKU 75564SCS
Solid Length 0.807 in
Suggested Max Deflection 1.193 in
Suggested Max Load 6.199 lbf
Total Coils 20.5
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75564S
Ends Closed & Ground
Finish None
Free Length 59 mm
Inside Diameter 7.01 mm
Material 302/304 Stainless Steel
Outside Diameter 8.99 mm
Part Type Metric
Rate 0.91 N/mm
SKU 75564SCS
Solid Length 20.5 mm
Suggested Max Deflection 30.3 mm
Suggested Max Load 27.57 N
Total Coils 20.5
Wire Diameter 0.99 mm
The compression spring 75564SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 302/304 stainless steel, the 75564S compression spring design exhibits exceptional tensile strength and resilience.

The 75564S design is manufactured with a free length of 2.323", with an outer diameter of 0.354", an inner diameter of 0.276", and a total of 20.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.196 lbs/in.

The 75564SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 75564S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
