Century Spring

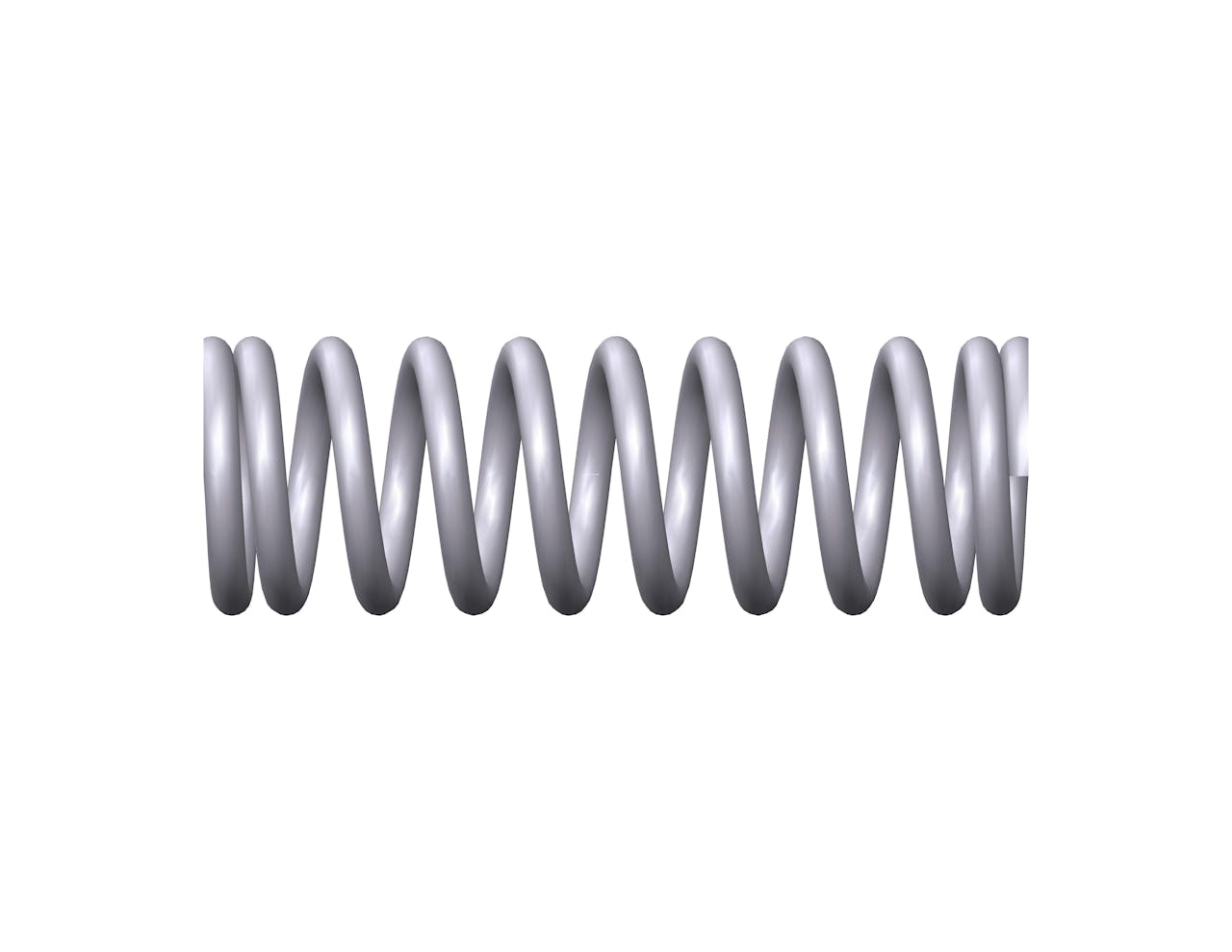

75557SCS - 0.846" 302/304 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.287", and an I.D. of 0.209".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75557S
Ends Closed & Ground
Finish None
Free Length 0.846 in
Inside Diameter 0.209 in
Material 302/304 Stainless Steel
Outside Diameter 0.287 in
Part Type Metric
Rate 23.155 lbs/in
SKU 75557SCS
Solid Length 0.413 in
Suggested Max Deflection 0.325 in
Suggested Max Load 7.525 lbf
Total Coils 10.5
Wire Diameter 0.039 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75557S
Ends Closed & Ground
Finish None
Free Length 21.49 mm
Inside Diameter 5.31 mm
Material 302/304 Stainless Steel
Outside Diameter 7.29 mm
Part Type Metric
Rate 4.05 N/mm
SKU 75557SCS
Solid Length 10.49 mm
Suggested Max Deflection 8.26 mm
Suggested Max Load 33.47 N
Total Coils 10.5
Wire Diameter 0.99 mm
The 75557S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75557SCS compression spring is designed with a free length of 0.846" total of 10.5 coils, and a rate of 27.785 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75557S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
