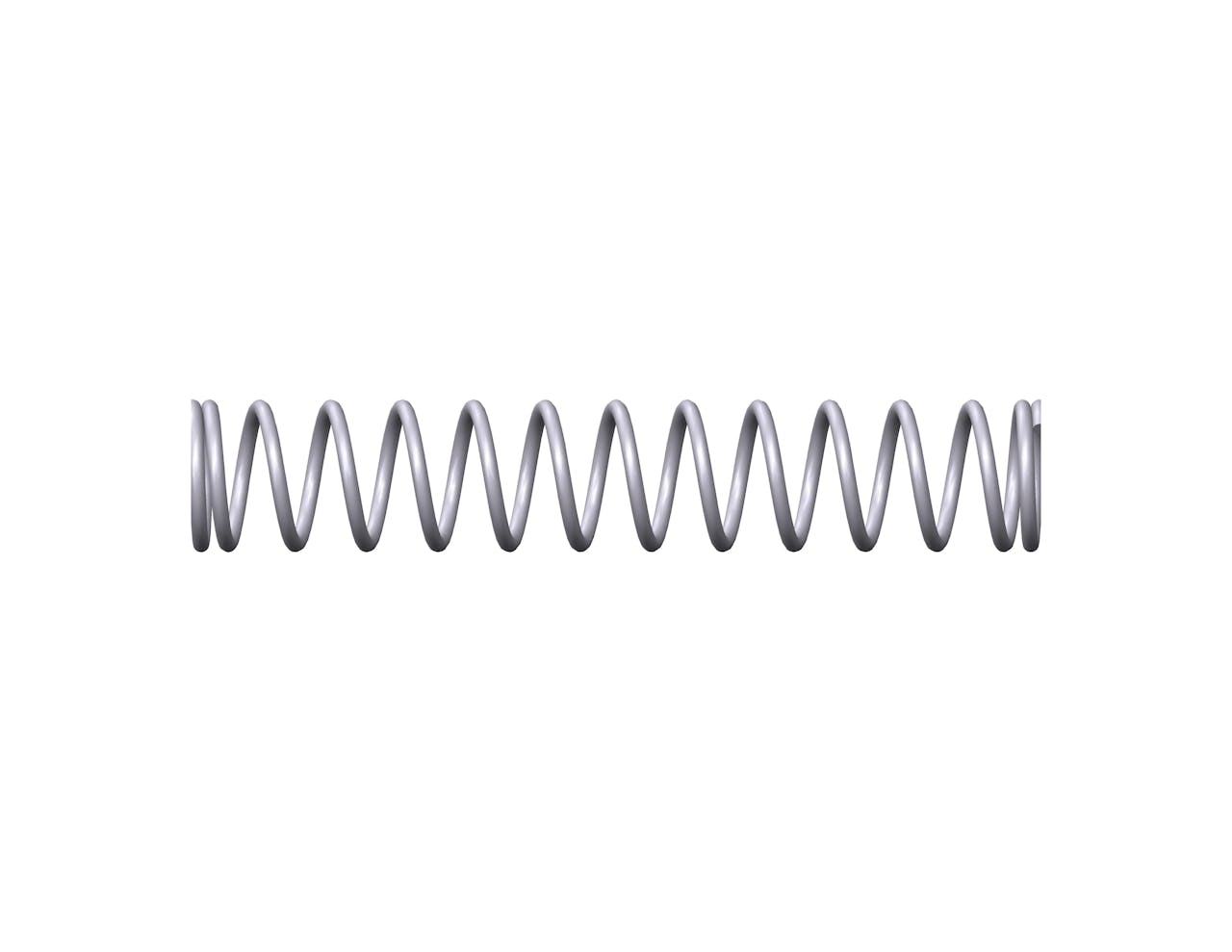

75531CS - 1.969" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 14.26 coils and closed & ground ends. This spring features an O.D. of 0.354", and an I.D. of 0.28".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75531 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.969 in |
| Inside Diameter | 0.28 in |
| Material | Music Wire |
| Outside Diameter | 0.354 in |
| Part Type | Metric |
| Rate | 7.2 lbs/in |
| SKU | 75531CS |
| Solid Length | 0.555 in |
| Suggested Max Deflection | 1.072 in |
| Suggested Max Load | 7.718 lbf |
| Total Coils | 14.26 |
| Wire Diameter | 0.037 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75531 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 50.01 mm |
| Inside Diameter | 7.11 mm |
| Material | Music Wire |
| Outside Diameter | 8.99 mm |
| Part Type | Metric |
| Rate | 1.26 N/mm |
| SKU | 75531CS |
| Solid Length | 14.1 mm |
| Suggested Max Deflection | 27.23 mm |
| Suggested Max Load | 34.33 N |
| Total Coils | 14.26 |
| Wire Diameter | 0.94 mm |
The 75531CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.037" diameter music wire, the 75531 spring design exhibits reliable strength across its 14.26 active coils, withstanding repeated compression cycles with a maximum load of 7.718 lbf without succumbing to fatigue.
We manufacture the 75531 design to provide a compression spring that is 1.969" long at rest and provides a consistent rate of 7.2 lbs/in along its recommended maximum of 1.072" deflection. For best results, your application should fully accommodate the inner (0.28") and outer (0.354") diameters of this spring and be designed for its closed & ground end configuration.
