Century Spring

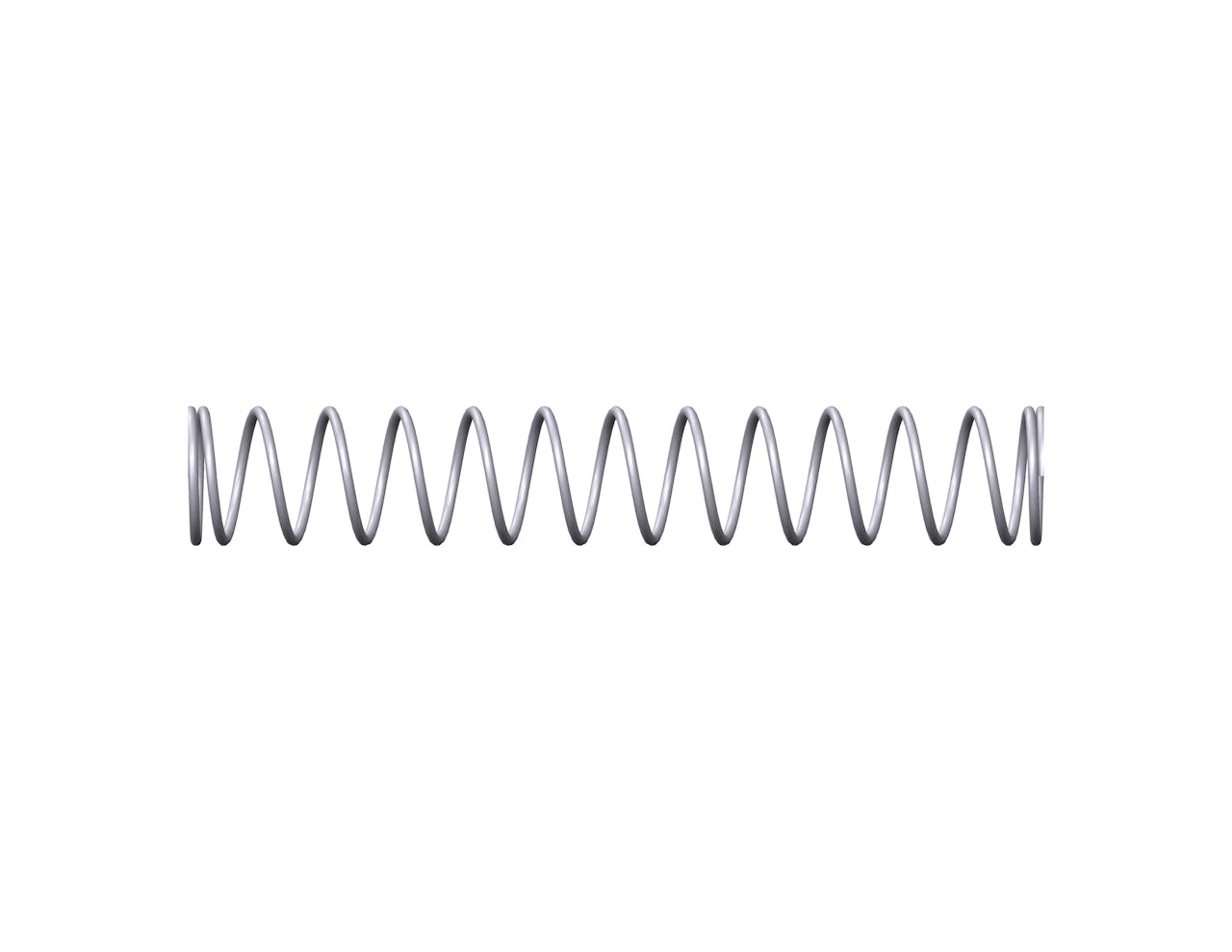

75482CS - 2.598" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 14.5 coils and closed & ground ends. This spring features an O.D. of 0.425", and an I.D. of 0.361".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75482
Ends Closed & Ground
Finish Zinc
Free Length 2.598 in
Inside Diameter 0.361 in
Material Music Wire
Outside Diameter 0.425 in
Part Type Metric
Rate 1.904 lbs/in
SKU 75482CS
Solid Length 0.457 in
Suggested Max Deflection 2.141 in
Suggested Max Load 4.076 lbf
Total Coils 14.5
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75482
Ends Closed & Ground
Finish Zinc
Free Length 65.99 mm
Inside Diameter 9.17 mm
Material Music Wire
Outside Diameter 10.8 mm
Part Type Metric
Rate 0.33 N/mm
SKU 75482CS
Solid Length 11.61 mm
Suggested Max Deflection 54.38 mm
Suggested Max Load 18.13 N
Total Coils 14.5
Wire Diameter 0.81 mm
The compression spring 75482CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75482 compression spring design exhibits exceptional tensile strength and resilience.

The 75482 design is manufactured with a free length of 2.598", with an outer diameter of 0.425", an inner diameter of 0.361", and a total of 14.5 coils, expertly designed to deliver consistent compression characteristics including a rate of 1.904 lbs/in.

The 75482CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 75482 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
