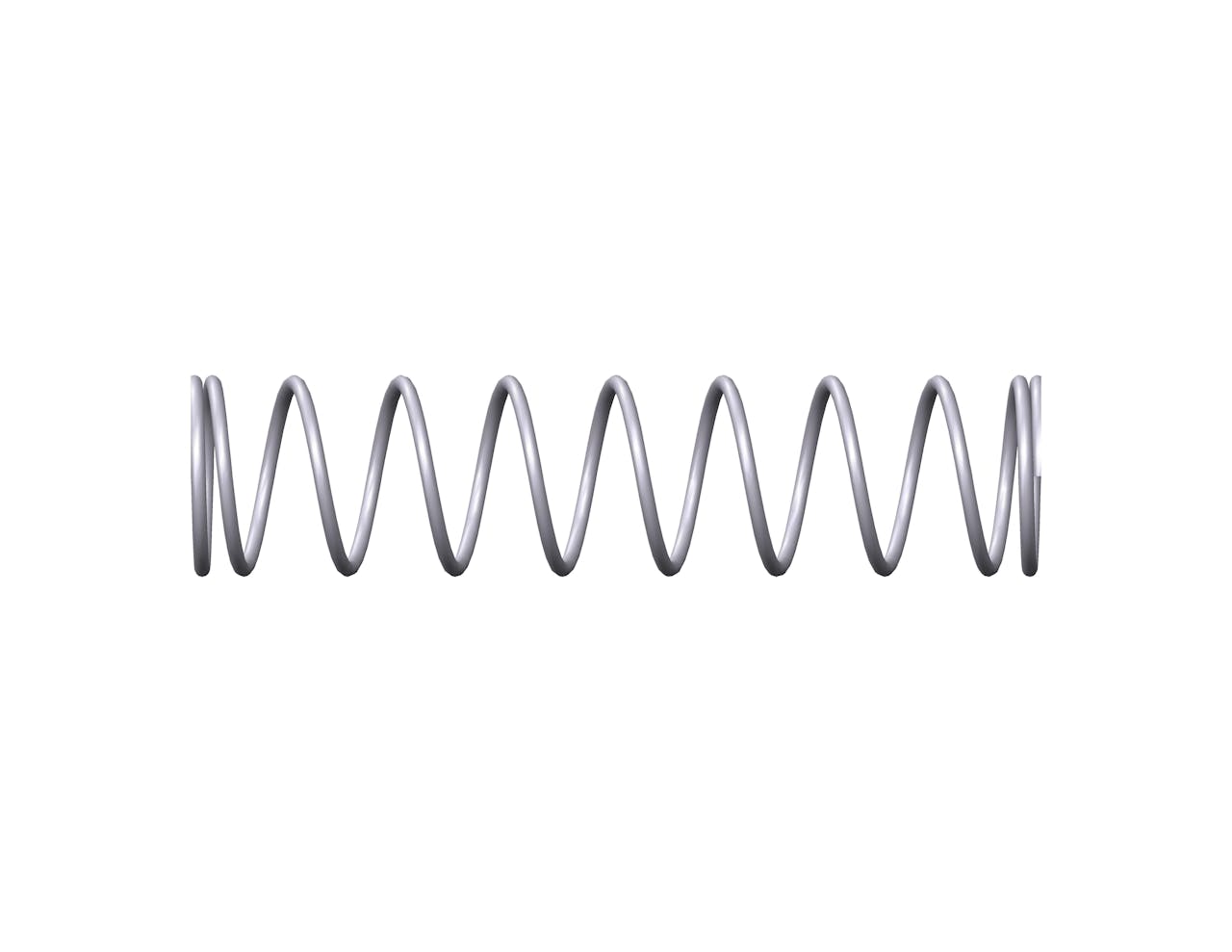

75481SCS - 1.791" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.425", and an I.D. of 0.361".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75481S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 1.791 in |
| Inside Diameter | 0.361 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.425 in |
| Part Type | Metric |
| Rate | 2.371 lbs/in |
| SKU | 75481SCS |
| Solid Length | 0.331 in |
| Suggested Max Deflection | 1.164 in |
| Suggested Max Load | 2.76 lbf |
| Total Coils | 10.5 |
| Wire Diameter | 0.032 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75481S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 45.49 mm |
| Inside Diameter | 9.17 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 10.8 mm |
| Part Type | Metric |
| Rate | 0.42 N/mm |
| SKU | 75481SCS |
| Solid Length | 8.41 mm |
| Suggested Max Deflection | 29.57 mm |
| Suggested Max Load | 12.28 N |
| Total Coils | 10.5 |
| Wire Diameter | 0.81 mm |
The 75481SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.032" diameter 302/304 stainless steel, the 75481S spring design exhibits reliable strength across its 10.5 active coils, withstanding repeated compression cycles with a maximum load of 2.76 lbf without succumbing to fatigue.
We manufacture the 75481S design to provide a compression spring that is 1.791" long at rest and provides a consistent rate of 2.371 lbs/in along its recommended maximum of 1.164" deflection. For best results, your application should fully accommodate the inner (0.361") and outer (0.425") diameters of this spring and be designed for its closed & ground end configuration.
