75452SCS - 0.906" 302/304 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |

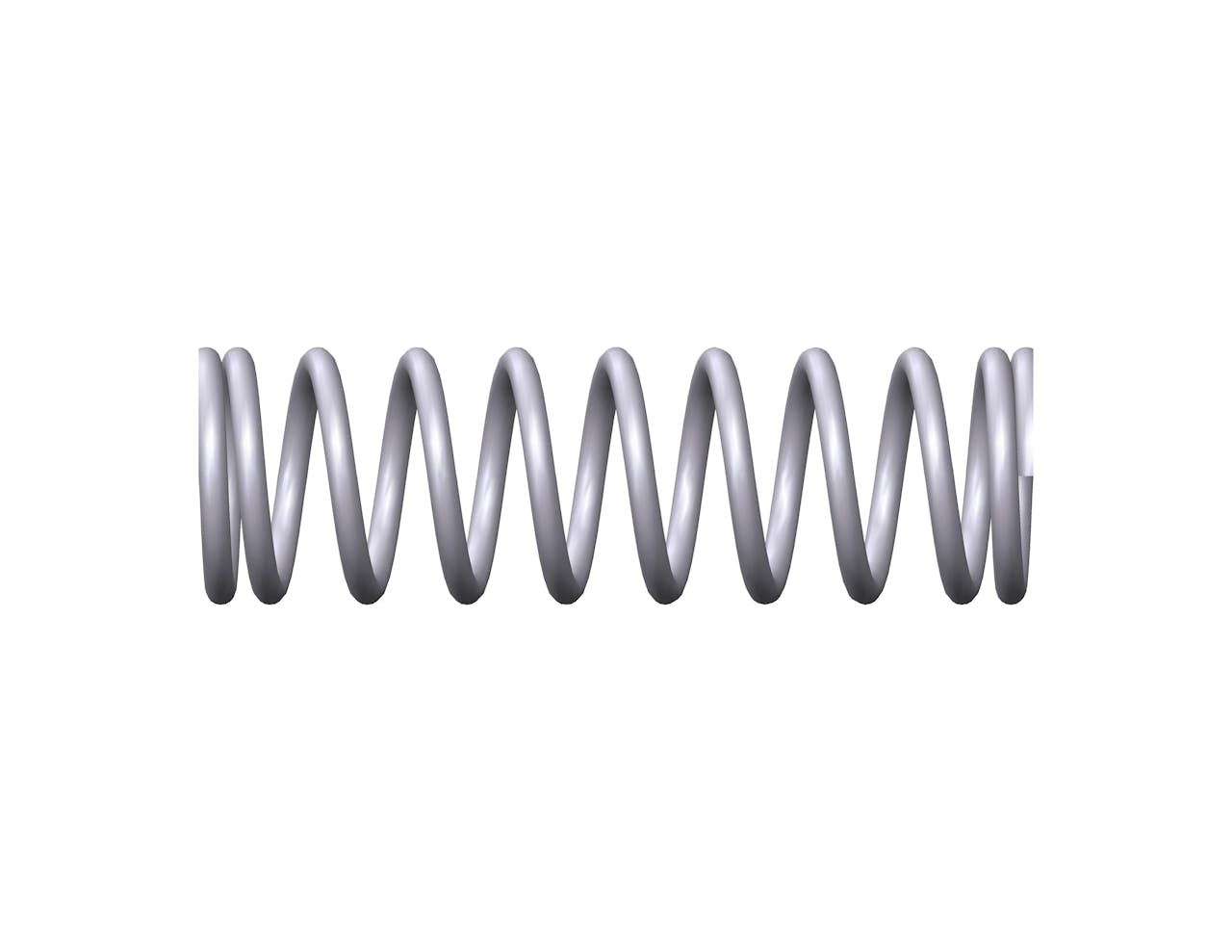

Compression spring manufactured from 302/304 stainless steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.28", and an I.D. of 0.216".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75452S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 0.906 in |
| Inside Diameter | 0.216 in |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 0.28 in |
| Part Type | Metric |
| Rate | 9.484 lbs/in |
| SKU | 75452SCS |
| Solid Length | 0.331 in |
| Suggested Max Deflection | 0.433 in |
| Suggested Max Load | 4.107 lbf |
| Total Coils | 10.5 |
| Wire Diameter | 0.032 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75452S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 23.01 mm |
| Inside Diameter | 5.49 mm |
| Material | 302/304 Stainless Steel |
| Outside Diameter | 7.11 mm |
| Part Type | Metric |
| Rate | 1.66 N/mm |
| SKU | 75452SCS |
| Solid Length | 8.41 mm |
| Suggested Max Deflection | 11 mm |
| Suggested Max Load | 18.27 N |
| Total Coils | 10.5 |
| Wire Diameter | 0.81 mm |
The 75452S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 75452SCS compression spring is designed with a free length of 0.906" total of 10.5 coils, and a rate of 11.381 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75452S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 75452SCS compression spring is designed with a free length of 0.906" total of 10.5 coils, and a rate of 11.381 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75452S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
