Century Spring

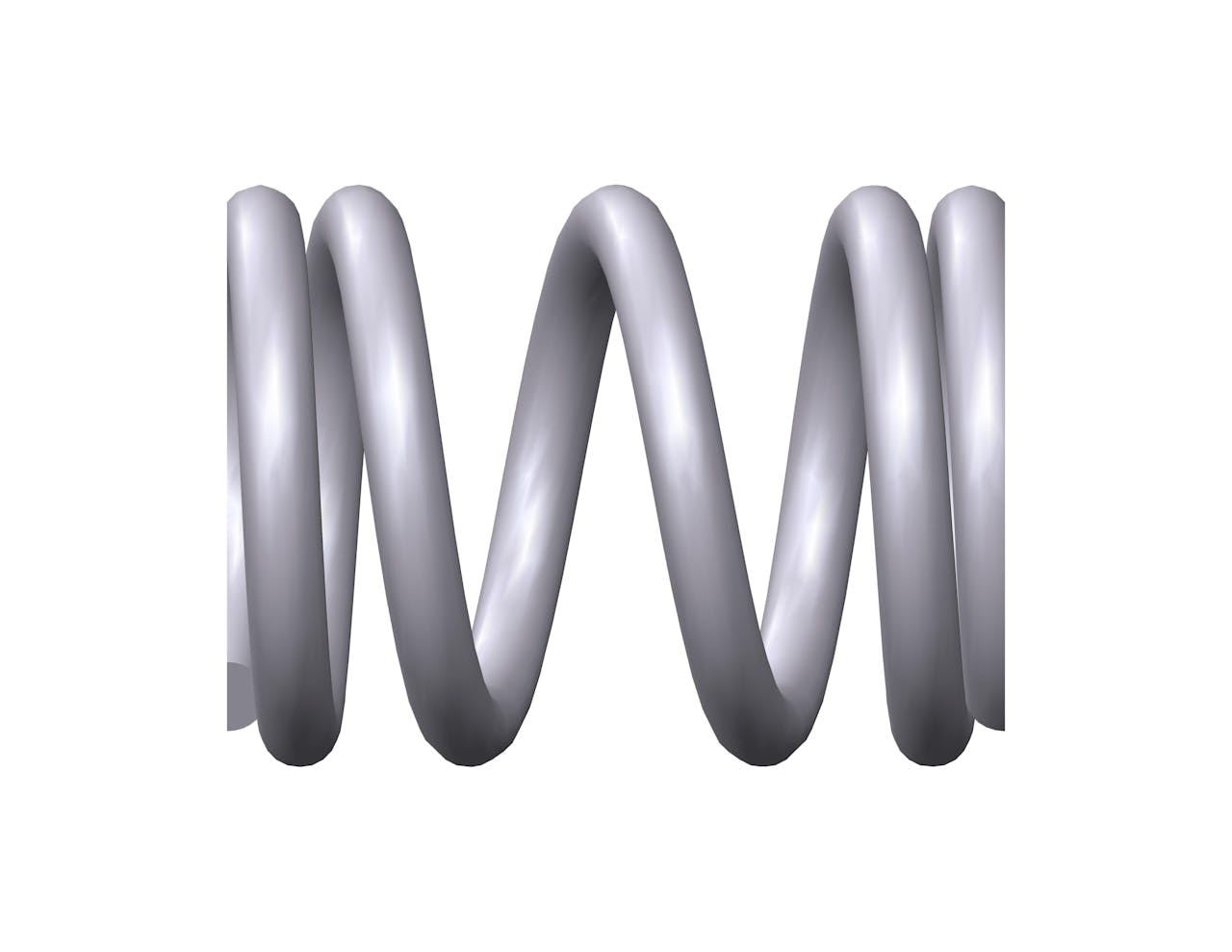

75435CS - 0.315" Music Wire Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from music wire with 4.84 coils and closed & ground ends. This spring features an O.D. of 0.236", and an I.D. of 0.172".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75435
Ends Closed & Ground
Finish Zinc
Free Length 0.315 in
Inside Diameter 0.172 in
Material Music Wire
Outside Diameter 0.236 in
Part Type Metric
Rate 60.87 lbs/in
SKU 75435CS
Solid Length 0.152 in
Suggested Max Deflection 0.122 in
Suggested Max Load 7.426 lbf
Total Coils 4.84
Wire Diameter 0.032 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 75435
Ends Closed & Ground
Finish Zinc
Free Length 8 mm
Inside Diameter 4.37 mm
Material Music Wire
Outside Diameter 5.99 mm
Part Type Metric
Rate 10.66 N/mm
SKU 75435CS
Solid Length 3.86 mm
Suggested Max Deflection 3.1 mm
Suggested Max Load 33.03 N
Total Coils 4.84
Wire Diameter 0.81 mm
The 75435CS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.032" diameter music wire, the 75435 spring design exhibits reliable strength across its 4.84 active coils, withstanding repeated compression cycles with a maximum load of 7.426 lbf without succumbing to fatigue.

We manufacture the 75435 design to provide a compression spring that is 0.315" long at rest and provides a consistent rate of 60.87 lbs/in along its recommended maximum of 0.122" deflection. For best results, your application should fully accommodate the inner (0.172") and outer (0.236") diameters of this spring and be designed for its closed & ground end configuration.
