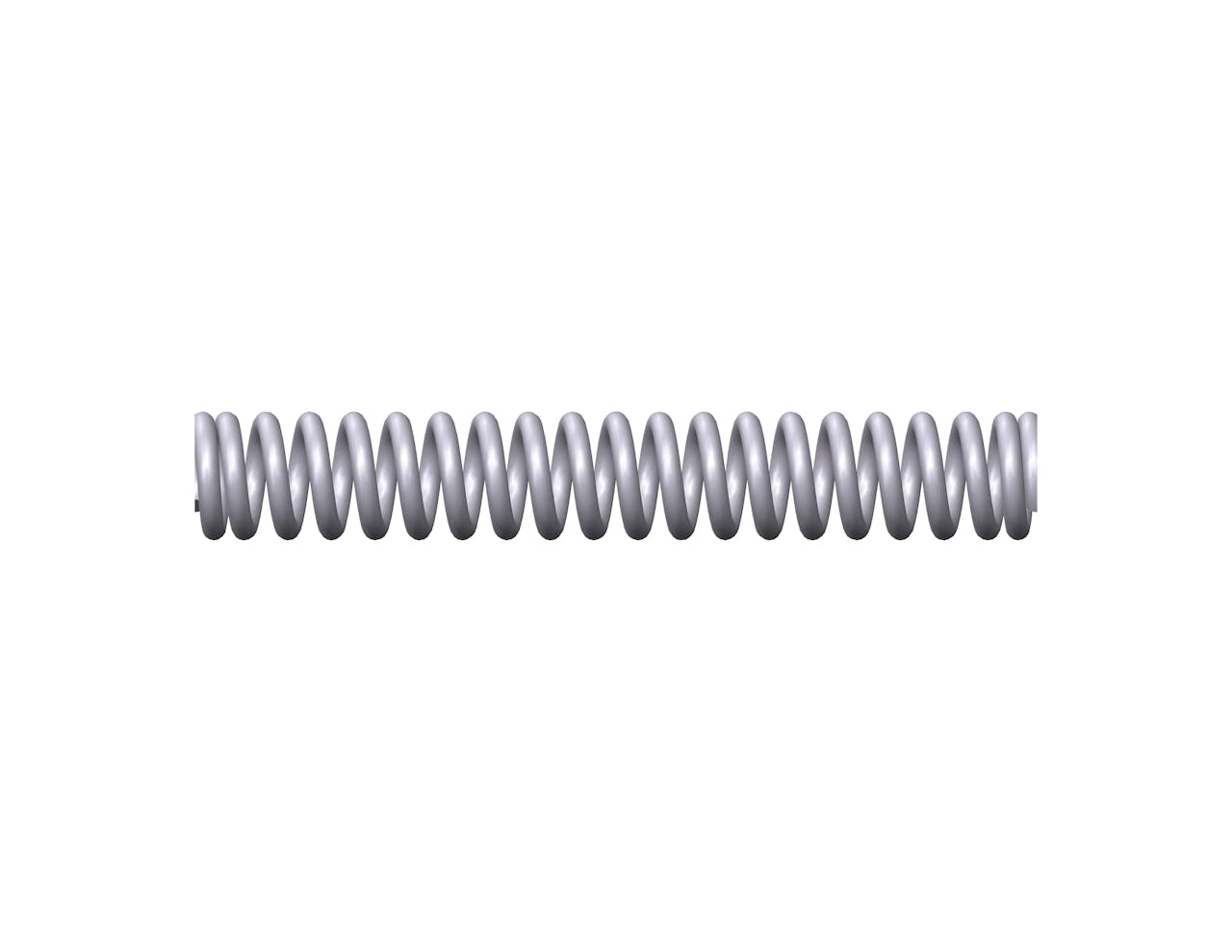

75421CS - 1.181" Music Wire Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from music wire with 20.69 coils and closed & ground ends. This spring features an O.D. of 0.181", and an I.D. of 0.117".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75421 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 1.181 in |
| Inside Diameter | 0.117 in |
| Material | Music Wire |
| Outside Diameter | 0.181 in |
| Part Type | Metric |
| Rate | 23.65 lbs/in |
| SKU | 75421CS |
| Solid Length | 0.65 in |
| Suggested Max Deflection | 0.398 in |
| Suggested Max Load | 9.413 lbf |
| Total Coils | 20.69 |
| Wire Diameter | 0.032 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 75421 |
| Ends | Closed & Ground |
| Finish | Zinc |
| Free Length | 30 mm |
| Inside Diameter | 2.97 mm |
| Material | Music Wire |
| Outside Diameter | 4.6 mm |
| Part Type | Metric |
| Rate | 4.14 N/mm |
| SKU | 75421CS |
| Solid Length | 16.51 mm |
| Suggested Max Deflection | 10.11 mm |
| Suggested Max Load | 41.87 N |
| Total Coils | 20.69 |
| Wire Diameter | 0.81 mm |
The 75421 compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality music wire and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 75421CS compression spring is designed with a free length of 1.083" total of 19.05 coils, and a rate of 21.6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75421 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 75421CS compression spring is designed with a free length of 1.083" total of 19.05 coils, and a rate of 21.6 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 75421 spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
