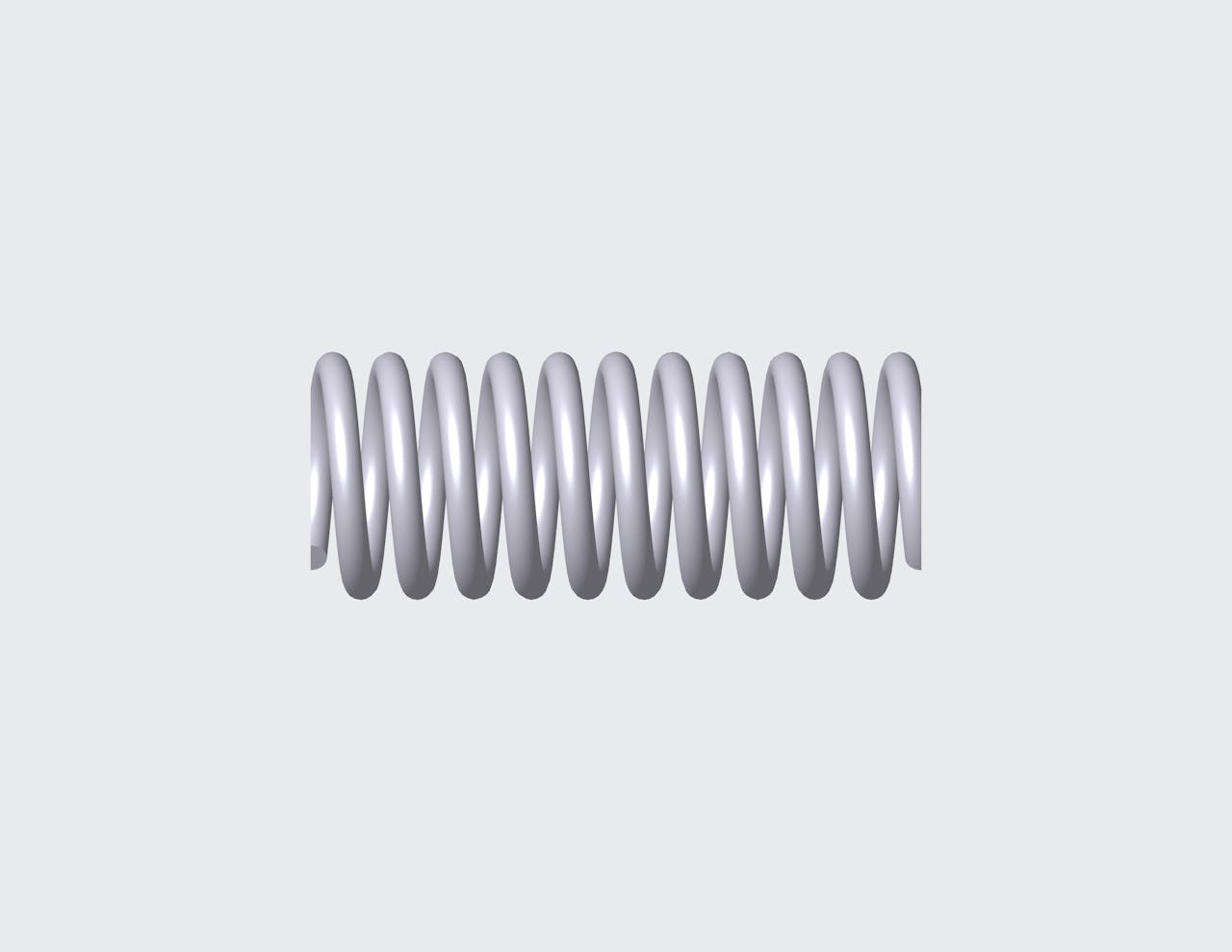

50917SCS - 2.953" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 10.2 coils and closed & ground ends. This spring features an O.D. of 1.201", and an I.D. of 0.886".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50917S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 2.953 in |
| Inside Diameter | 0.886 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 1.201 in |
| Rate | 82.56 lbs/in |
| SKU | 50917SCS |
| Solid Length | 1.606 in |
| Suggested Max Deflection | 0.914 in |
| Suggested Max Load | 75.466 lbf |
| Total Coils | 10.2 |
| Wire Diameter | 0.157 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50917S |
| Ends | Closed & Ground |
| Finish | None |
| Free Length | 75.01 mm |
| Inside Diameter | 22.5 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 30.51 mm |
| Rate | 14.46 N/mm |
| SKU | 50917SCS |
| Solid Length | 40.79 mm |
| Suggested Max Deflection | 23.22 mm |
| Suggested Max Load | 335.67 N |
| Total Coils | 10.2 |
| Wire Diameter | 3.99 mm |
The compression spring 50917SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50917S compression spring design exhibits exceptional tensile strength and resilience.
The 50917S design is manufactured with a free length of 2.953", with an outer diameter of 1.201", an inner diameter of 0.886", and a total of 10.2 coils, expertly designed to deliver consistent compression characteristics including a rate of 82.56 lbs/in.
The 50917SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50917S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
The 50917S design is manufactured with a free length of 2.953", with an outer diameter of 1.201", an inner diameter of 0.886", and a total of 10.2 coils, expertly designed to deliver consistent compression characteristics including a rate of 82.56 lbs/in.
The 50917SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.
In summary, the compression spring 50917S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
