Century Spring

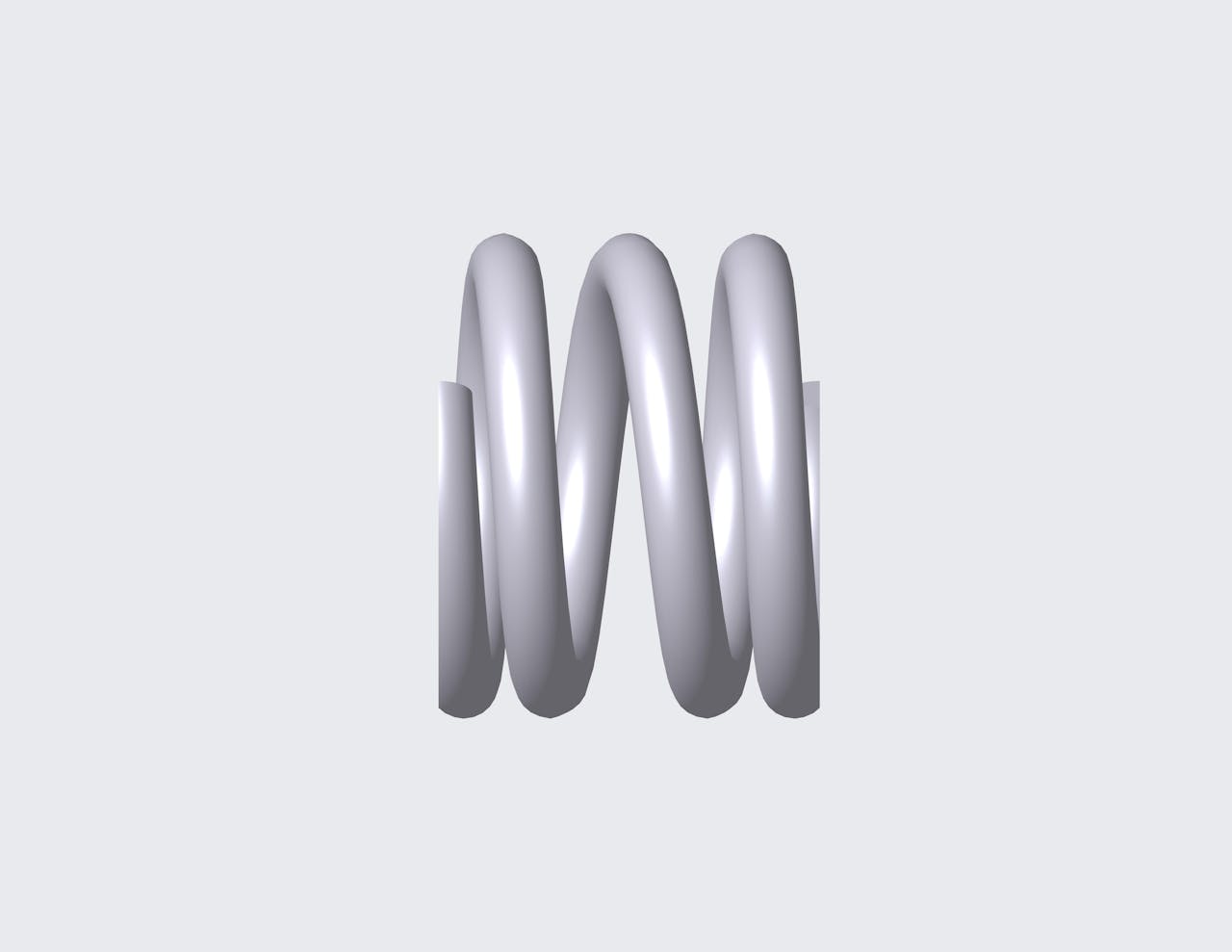

50779SCS - 0.787" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 3.9 coils and closed & ground ends. This spring features an O.D. of 1.002", and an I.D. of 0.722".

NOTE: The spring rate value for compression springs with 4 coils or less is a reference value.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50779S
Ends Closed & Ground
Finish Passivated
Free Length 0.787 in
Inside Diameter 0.722 in
Material 316 Stainless Steel
Outside Diameter 1.002 in
Rate 396.089 lbs/in
SKU 50779SCS
Solid Length 0.547 in
Suggested Max Deflection 0.165 in
Suggested Max Load 65.162 lbf
Total Coils 3.9
Wire Diameter 0.14 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50779S
Ends Closed & Ground
Finish Passivated
Free Length 19.99 mm
Inside Diameter 18.34 mm
Material 316 Stainless Steel
Outside Diameter 25.45 mm
Rate 69.36 N/mm
SKU 50779SCS
Solid Length 13.89 mm
Suggested Max Deflection 4.19 mm
Suggested Max Load 289.84 N
Total Coils 3.9
Wire Diameter 3.56 mm
The 50779S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50779SCS compression spring is designed with a free length of 4.724" total of 19.1 coils, and a rate of 129.269 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50779S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
