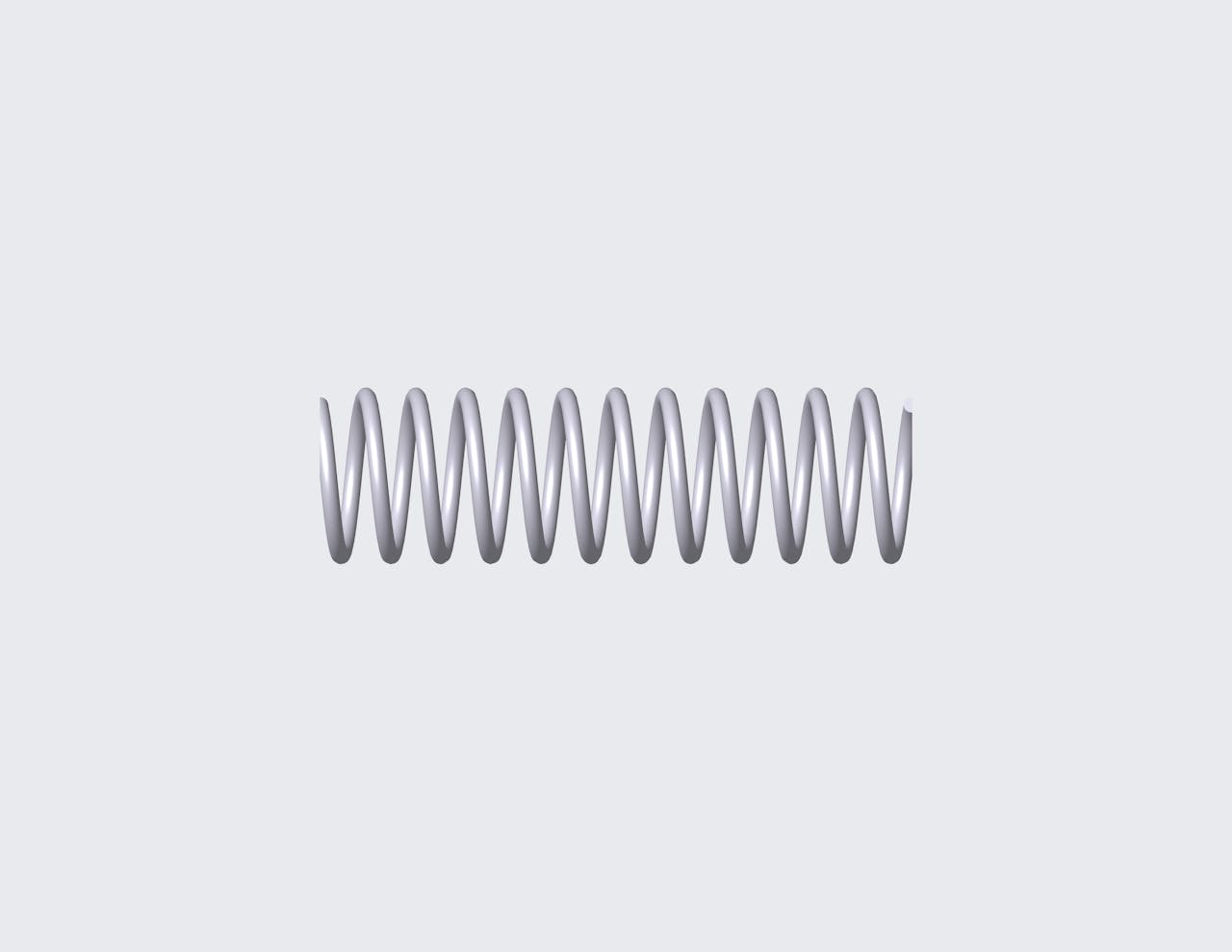

50773SCS - 3.346" 316 Stainless Steel Compression Spring
| Inventory Status |
|
|---|---|
| Estimated Lead Time | |
Compression spring manufactured from 316 stainless steel with 11.5 coils and closed & ground ends. This spring features an O.D. of 1", and an I.D. of 0.803".
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50773S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 3.346 in |
| Inside Diameter | 0.803 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 1 in |
| Rate | 16.85 lbs/in |
| SKU | 50773SCS |
| Solid Length | 1.132 in |
| Suggested Max Deflection | 1.49 in |
| Suggested Max Load | 25.102 lbf |
| Total Coils | 11.5 |
| Wire Diameter | 0.098 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 50773S |
| Ends | Closed & Ground |
| Finish | Passivated |
| Free Length | 84.99 mm |
| Inside Diameter | 20.4 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 25.4 mm |
| Rate | 2.95 N/mm |
| SKU | 50773SCS |
| Solid Length | 28.75 mm |
| Suggested Max Deflection | 37.85 mm |
| Suggested Max Load | 111.65 N |
| Total Coils | 11.5 |
| Wire Diameter | 2.49 mm |
The 50773S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.
The 50773SCS compression spring is designed with a free length of 2.953" total of 12.3 coils, and a rate of 214.611 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 50773S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
The 50773SCS compression spring is designed with a free length of 2.953" total of 12.3 coils, and a rate of 214.611 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.
The 50773S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
