Century Spring

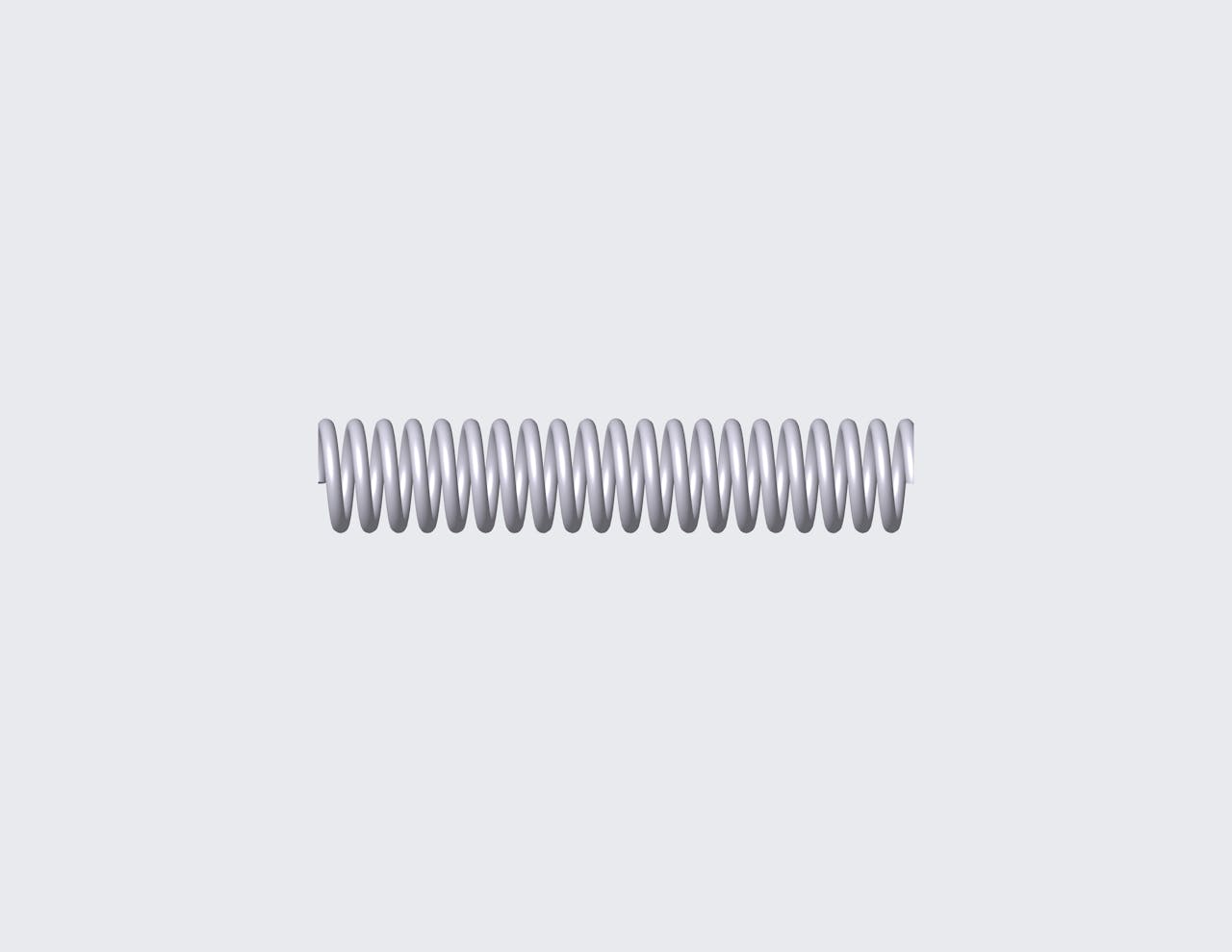

50717SCS - 4.724" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 20 coils and closed & ground ends. This spring features an O.D. of 0.913", and an I.D. of 0.662".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50717S
Ends Closed & Ground
Finish Passivated
Free Length 4.724 in
Inside Diameter 0.662 in
Material 316 Stainless Steel
Outside Diameter 0.913 in
Rate 34.948 lbs/in
SKU 50717SCS
Solid Length 2.504 in
Suggested Max Deflection 1.462 in
Suggested Max Load 51.101 lbf
Total Coils 20
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50717S
Ends Closed & Ground
Finish Passivated
Free Length 119.99 mm
Inside Diameter 16.81 mm
Material 316 Stainless Steel
Outside Diameter 23.19 mm
Rate 6.12 N/mm
SKU 50717SCS
Solid Length 63.6 mm
Suggested Max Deflection 37.13 mm
Suggested Max Load 227.3 N
Total Coils 20
Wire Diameter 3.18 mm
The 50717SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.125" diameter 316 stainless steel, the 50717S spring design exhibits reliable strength across its 20 active coils, withstanding repeated compression cycles with a maximum load of 51.101 lbf without succumbing to fatigue.

We manufacture the 50717S design to provide a compression spring that is 4.724" long at rest and provides a consistent rate of 34.948 lbs/in along its recommended maximum of 1.462" deflection. For best results, your application should fully accommodate the inner (0.662") and outer (0.913") diameters of this spring and be designed for its closed & ground end configuration.
