Century Spring

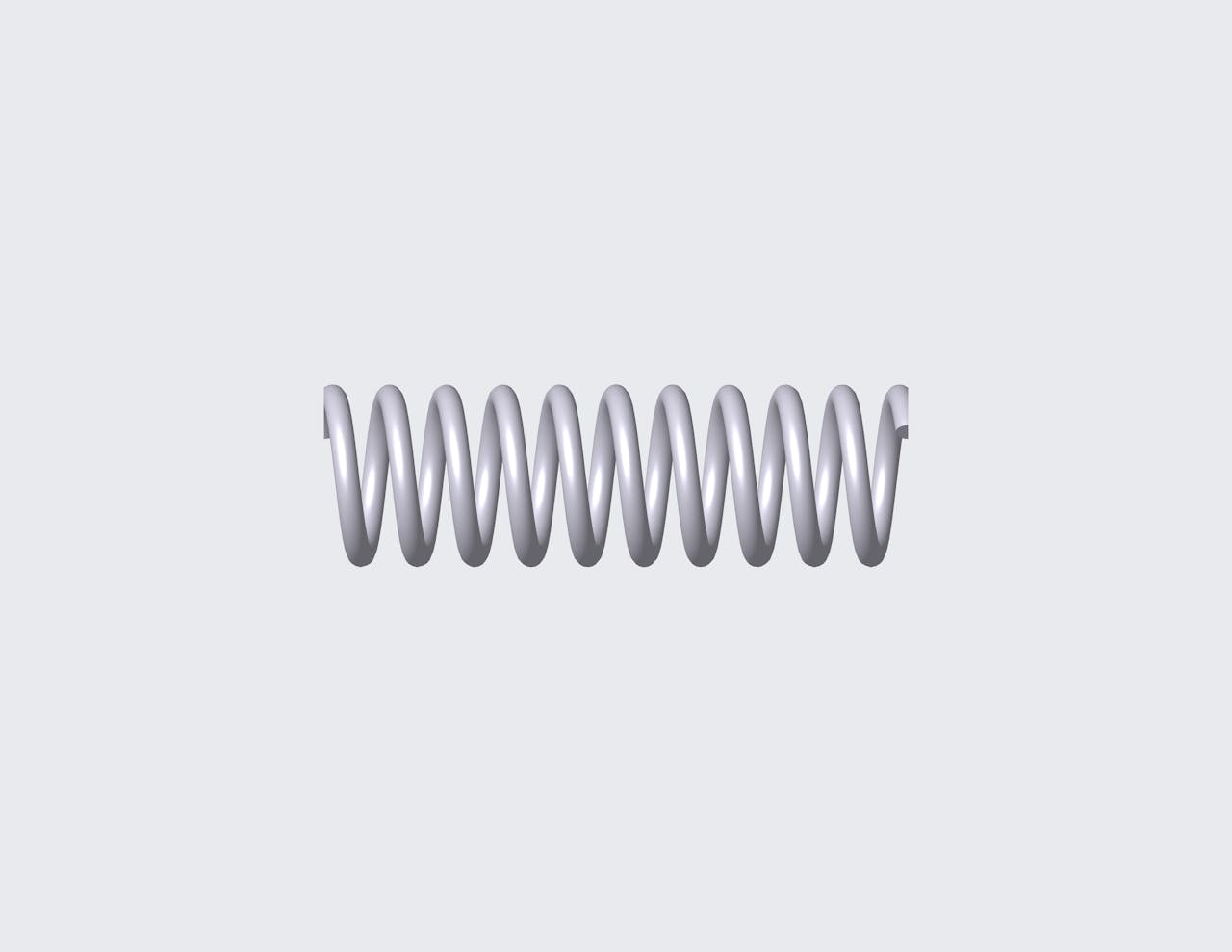

50714SCS - 2.913" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 9.87 coils and closed & ground ends. This spring features an O.D. of 0.913", and an I.D. of 0.662".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50714S
Ends Closed & Ground
Finish Passivated
Free Length 2.913 in
Inside Diameter 0.662 in
Material 316 Stainless Steel
Outside Diameter 0.913 in
Rate 79.932 lbs/in
SKU 50714SCS
Solid Length 1.236 in
Suggested Max Deflection 0.639 in
Suggested Max Load 51.101 lbf
Total Coils 9.87
Wire Diameter 0.125 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50714S
Ends Closed & Ground
Finish Passivated
Free Length 73.99 mm
Inside Diameter 16.81 mm
Material 316 Stainless Steel
Outside Diameter 23.19 mm
Rate 14 N/mm
SKU 50714SCS
Solid Length 31.39 mm
Suggested Max Deflection 16.23 mm
Suggested Max Load 227.3 N
Total Coils 9.87
Wire Diameter 3.18 mm
The 50714SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.125" diameter 316 stainless steel, the 50714S spring design exhibits reliable strength across its 9.87 active coils, withstanding repeated compression cycles with a maximum load of 51.101 lbf without succumbing to fatigue.

We manufacture the 50714S design to provide a compression spring that is 2.913" long at rest and provides a consistent rate of 79.932 lbs/in along its recommended maximum of 0.639" deflection. For best results, your application should fully accommodate the inner (0.662") and outer (0.913") diameters of this spring and be designed for its closed & ground end configuration.
