Century Spring

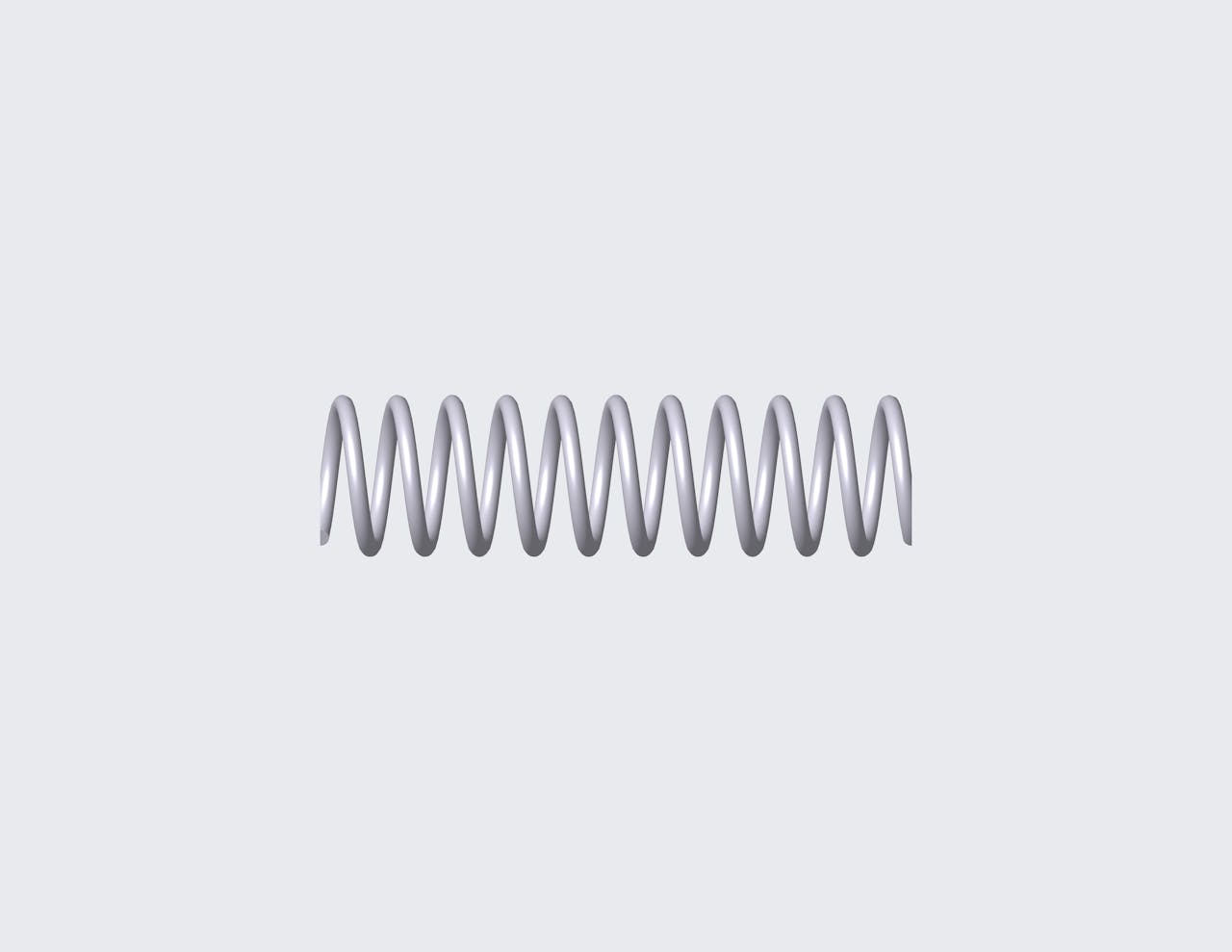

50704SCS - 3.228" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10.5 coils and closed & ground ends. This spring features an O.D. of 0.886", and an I.D. of 0.689".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50704S
Ends Closed & Ground
Finish Passivated
Free Length 3.228 in
Inside Diameter 0.689 in
Material 316 Stainless Steel
Outside Diameter 0.886 in
Rate 28.27 lbs/in
SKU 50704SCS
Solid Length 1.033 in
Suggested Max Deflection 0.995 in
Suggested Max Load 28.135 lbf
Total Coils 10.5
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50704S
Ends Closed & Ground
Finish Passivated
Free Length 81.99 mm
Inside Diameter 17.5 mm
Material 316 Stainless Steel
Outside Diameter 22.5 mm
Rate 4.95 N/mm
SKU 50704SCS
Solid Length 26.24 mm
Suggested Max Deflection 25.27 mm
Suggested Max Load 125.14 N
Total Coils 10.5
Wire Diameter 2.49 mm
The 50704S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50704SCS compression spring is designed with a free length of 2.126" total of 7.5 coils, and a rate of 43.69 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50704S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
