50701SCS - 1.063" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

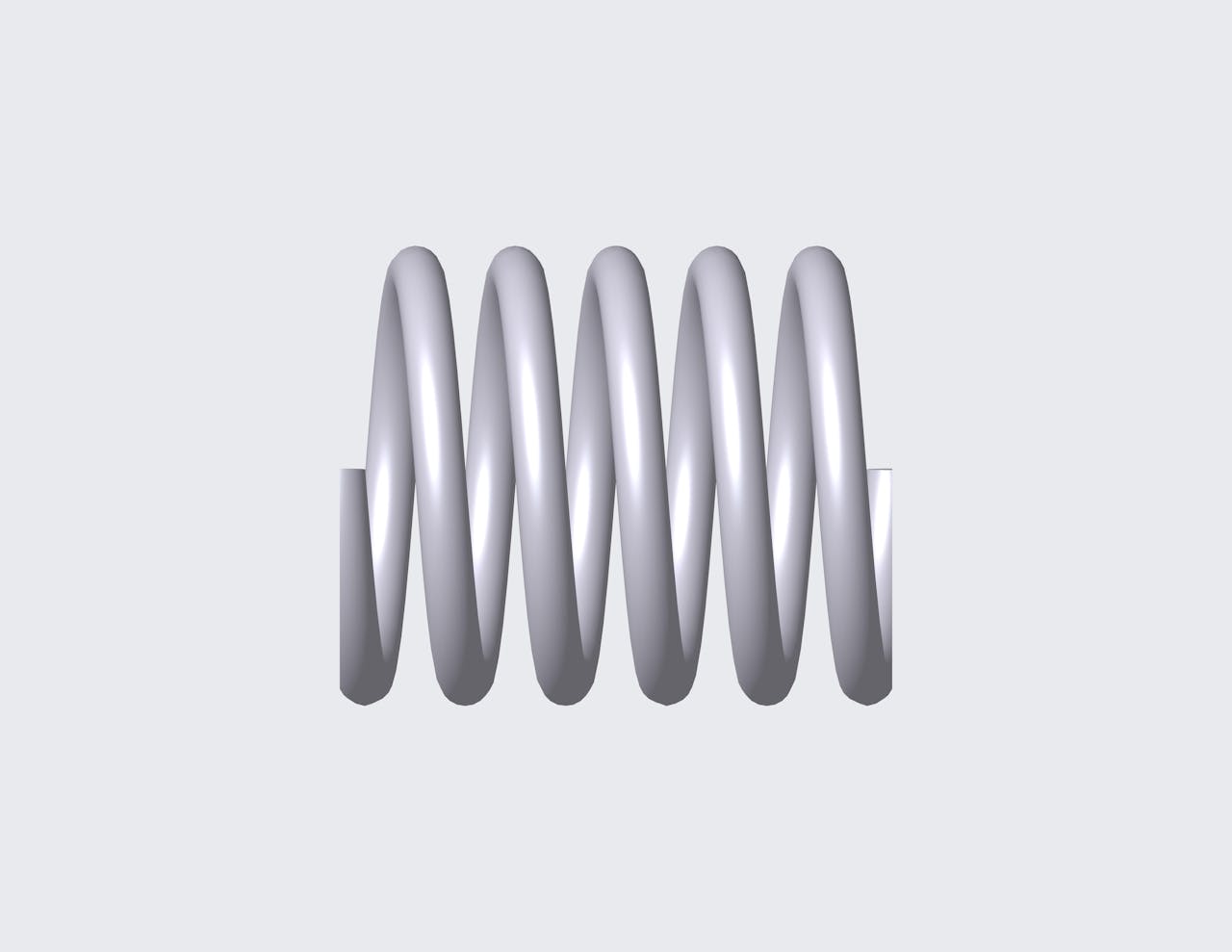

Compression spring manufactured from 316 stainless steel with 5 coils and closed & ground ends. This spring features an O.D. of 0.886", and an I.D. of 0.689".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50701S
Ends Closed & Ground
Finish Passivated
Free Length 1.063 in
Inside Diameter 0.689 in
Material 316 Stainless Steel
Outside Diameter 0.886 in
Rate 80.099 lbs/in
SKU 50701SCS
Solid Length 0.492 in
Suggested Max Deflection 0.351 in
Suggested Max Load 28.135 lbf
Total Coils 5
Wire Diameter 0.098 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50701S
Ends Closed & Ground
Finish Passivated
Free Length 27 mm
Inside Diameter 17.5 mm
Material 316 Stainless Steel
Outside Diameter 22.5 mm
Rate 14.03 N/mm
SKU 50701SCS
Solid Length 12.5 mm
Suggested Max Deflection 8.92 mm
Suggested Max Load 125.14 N
Total Coils 5
Wire Diameter 2.49 mm
The 50701S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50701SCS compression spring is designed with a free length of 3.543" total of 15.7 coils, and a rate of 42.575 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50701S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
