Century Spring

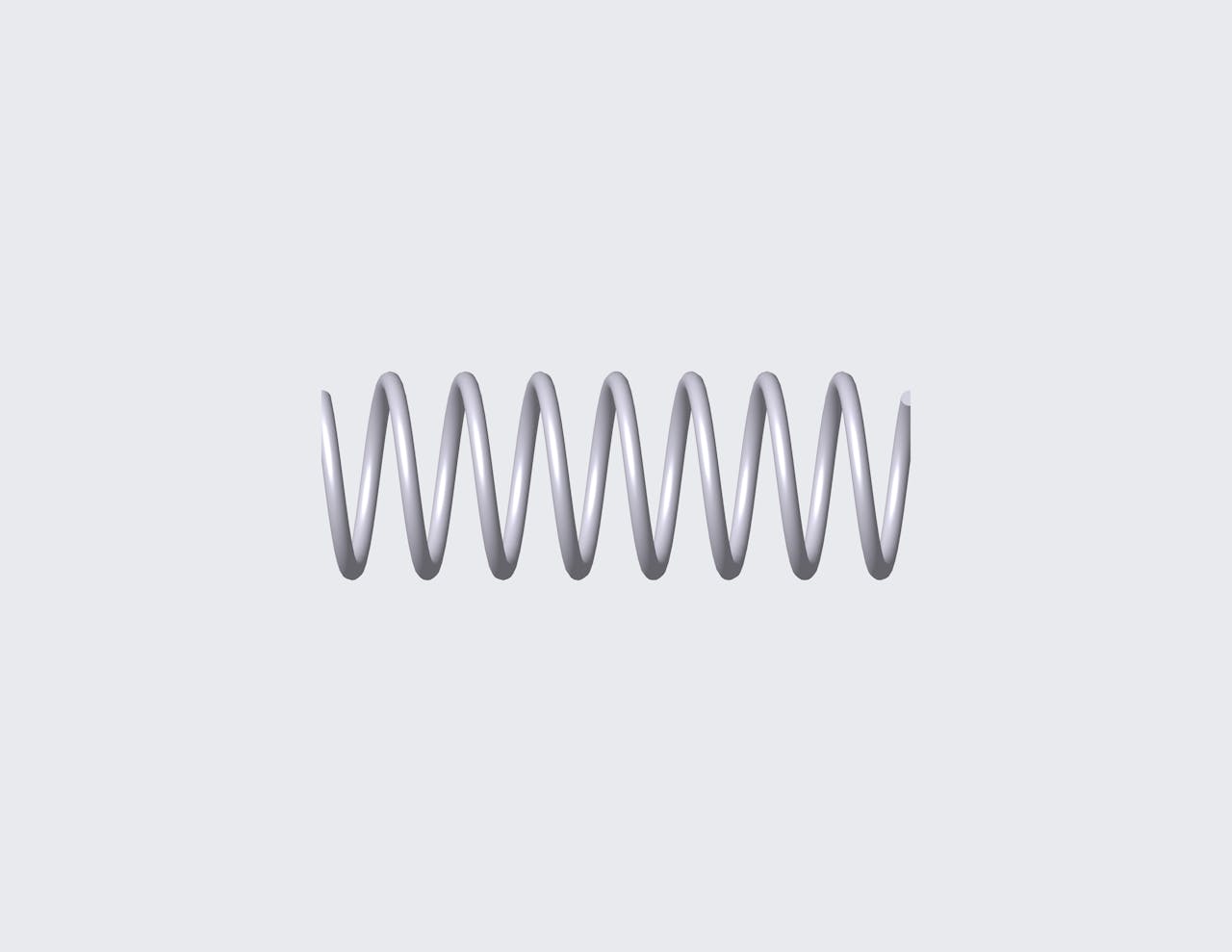

50667SCS - 2.441" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 7.55 coils and closed & ground ends. This spring features an O.D. of 0.867", and an I.D. of 0.707".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50667S
Ends Closed & Ground
Finish Passivated
Free Length 2.441 in
Inside Diameter 0.707 in
Material 316 Stainless Steel
Outside Diameter 0.867 in
Rate 18.823 lbs/in
SKU 50667SCS
Solid Length 0.603 in
Suggested Max Deflection 0.868 in
Suggested Max Load 16.336 lbf
Total Coils 7.55
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50667S
Ends Closed & Ground
Finish Passivated
Free Length 62 mm
Inside Diameter 17.96 mm
Material 316 Stainless Steel
Outside Diameter 22.02 mm
Rate 3.3 N/mm
SKU 50667SCS
Solid Length 15.32 mm
Suggested Max Deflection 22.05 mm
Suggested Max Load 72.66 N
Total Coils 7.55
Wire Diameter 2.03 mm
The 50667SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter 316 stainless steel, the 50667S spring design exhibits reliable strength across its 7.55 active coils, withstanding repeated compression cycles with a maximum load of 16.336 lbf without succumbing to fatigue.

We manufacture the 50667S design to provide a compression spring that is 2.441" long at rest and provides a consistent rate of 18.823 lbs/in along its recommended maximum of 0.868" deflection. For best results, your application should fully accommodate the inner (0.707") and outer (0.867") diameters of this spring and be designed for its closed & ground end configuration.
