Century Spring

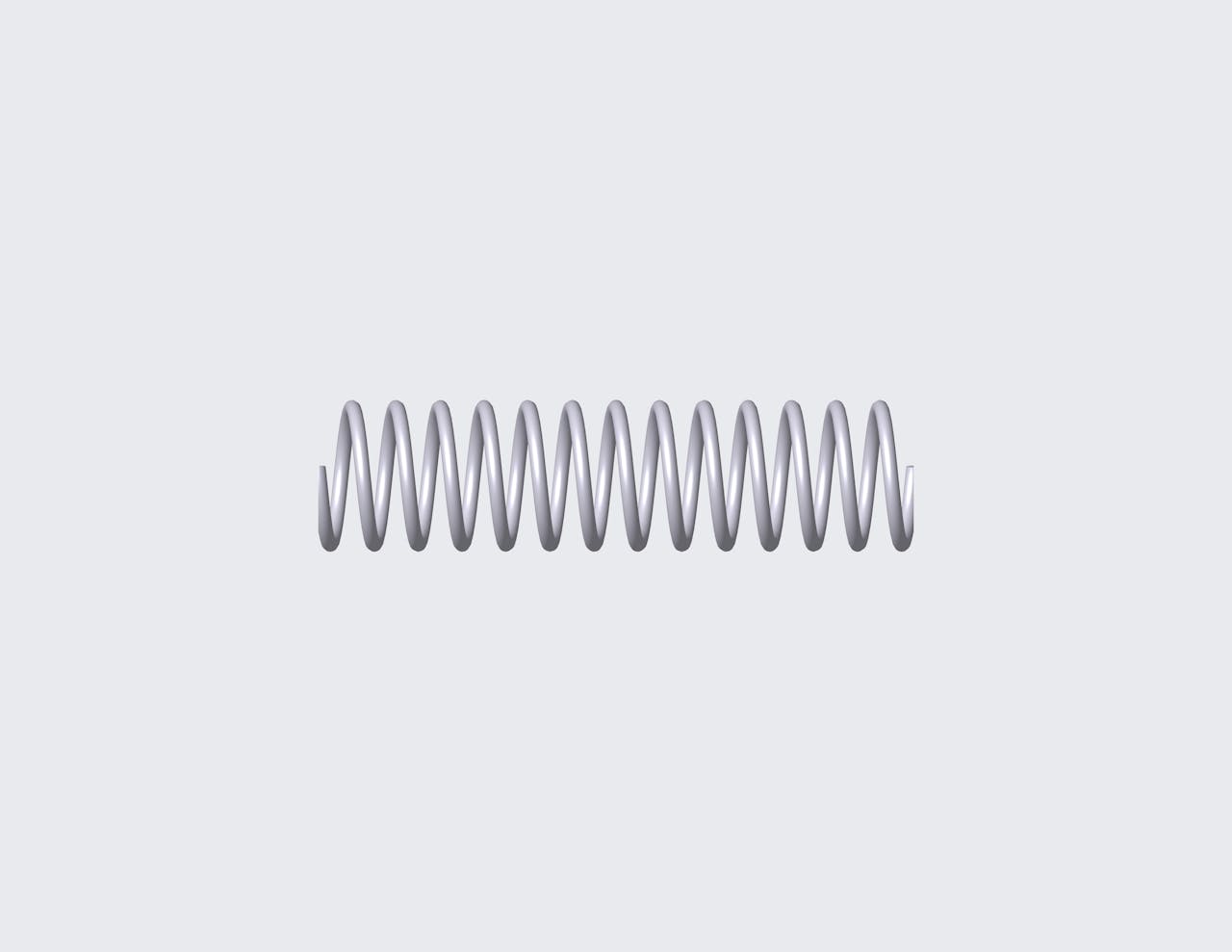

50625SCS - 3.15" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 13.2 coils and closed & ground ends. This spring features an O.D. of 0.804", and an I.D. of 0.644".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50625S
Ends Closed & Ground
Finish Passivated
Free Length 3.15 in
Inside Diameter 0.644 in
Material 316 Stainless Steel
Outside Diameter 0.804 in
Rate 11.978 lbs/in
SKU 50625SCS
Solid Length 1.055 in
Suggested Max Deflection 1.465 in
Suggested Max Load 17.547 lbf
Total Coils 13.2
Wire Diameter 0.08 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50625S
Ends Closed & Ground
Finish Passivated
Free Length 80.01 mm
Inside Diameter 16.36 mm
Material 316 Stainless Steel
Outside Diameter 20.42 mm
Rate 2.1 N/mm
SKU 50625SCS
Solid Length 26.8 mm
Suggested Max Deflection 37.21 mm
Suggested Max Load 78.05 N
Total Coils 13.2
Wire Diameter 2.03 mm
The 50625SCS compression spring is a meticulously engineered component designed for a wide range of industrial applications requiring reliable performance and durability. Crafted from premium 0.08" diameter 316 stainless steel, the 50625S spring design exhibits reliable strength across its 13.2 active coils, withstanding repeated compression cycles with a maximum load of 17.547 lbf without succumbing to fatigue.

We manufacture the 50625S design to provide a compression spring that is 3.15" long at rest and provides a consistent rate of 11.978 lbs/in along its recommended maximum of 1.465" deflection. For best results, your application should fully accommodate the inner (0.644") and outer (0.804") diameters of this spring and be designed for its closed & ground end configuration.
