Century Spring

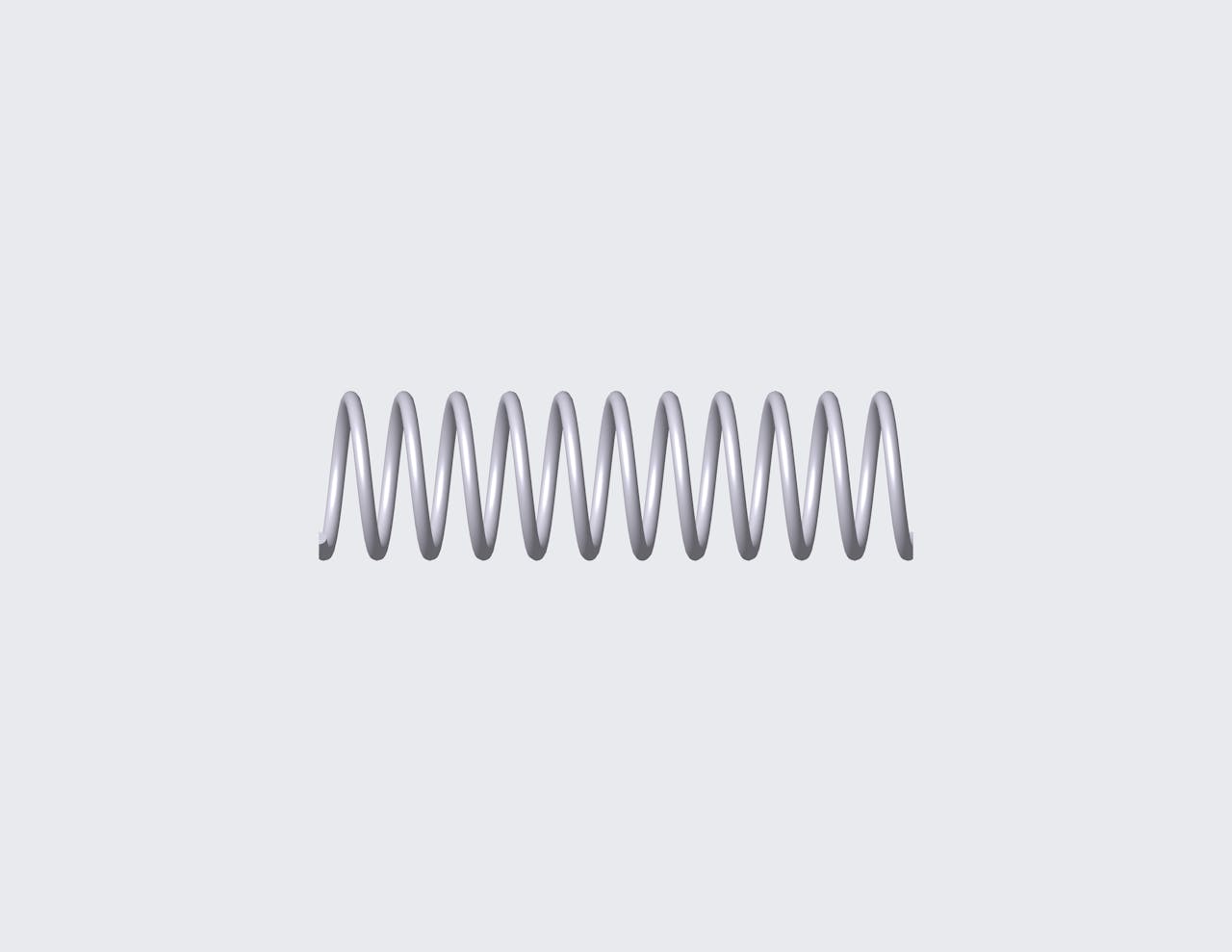

50617SCS - 2.756" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 10.91 coils and closed & ground ends. This spring features an O.D. of 0.789", and an I.D. of 0.644".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50617S
Ends Closed & Ground
Finish Passivated
Free Length 2.756 in
Inside Diameter 0.644 in
Material 316 Stainless Steel
Outside Diameter 0.789 in
Rate 10.275 lbs/in
SKU 50617SCS
Solid Length 0.786 in
Suggested Max Deflection 1.282 in
Suggested Max Load 13.168 lbf
Total Coils 10.91
Wire Diameter 0.072 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50617S
Ends Closed & Ground
Finish Passivated
Free Length 70 mm
Inside Diameter 16.36 mm
Material 316 Stainless Steel
Outside Diameter 20.04 mm
Rate 1.8 N/mm
SKU 50617SCS
Solid Length 19.96 mm
Suggested Max Deflection 32.56 mm
Suggested Max Load 58.57 N
Total Coils 10.91
Wire Diameter 1.83 mm
The compression spring 50617SCS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality 316 stainless steel, the 50617S compression spring design exhibits exceptional tensile strength and resilience.

The 50617S design is manufactured with a free length of 2.756", with an outer diameter of 0.789", an inner diameter of 0.644", and a total of 10.91 coils, expertly designed to deliver consistent compression characteristics including a rate of 10.275 lbs/in.

The 50617SCS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 50617S design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
