Century Spring

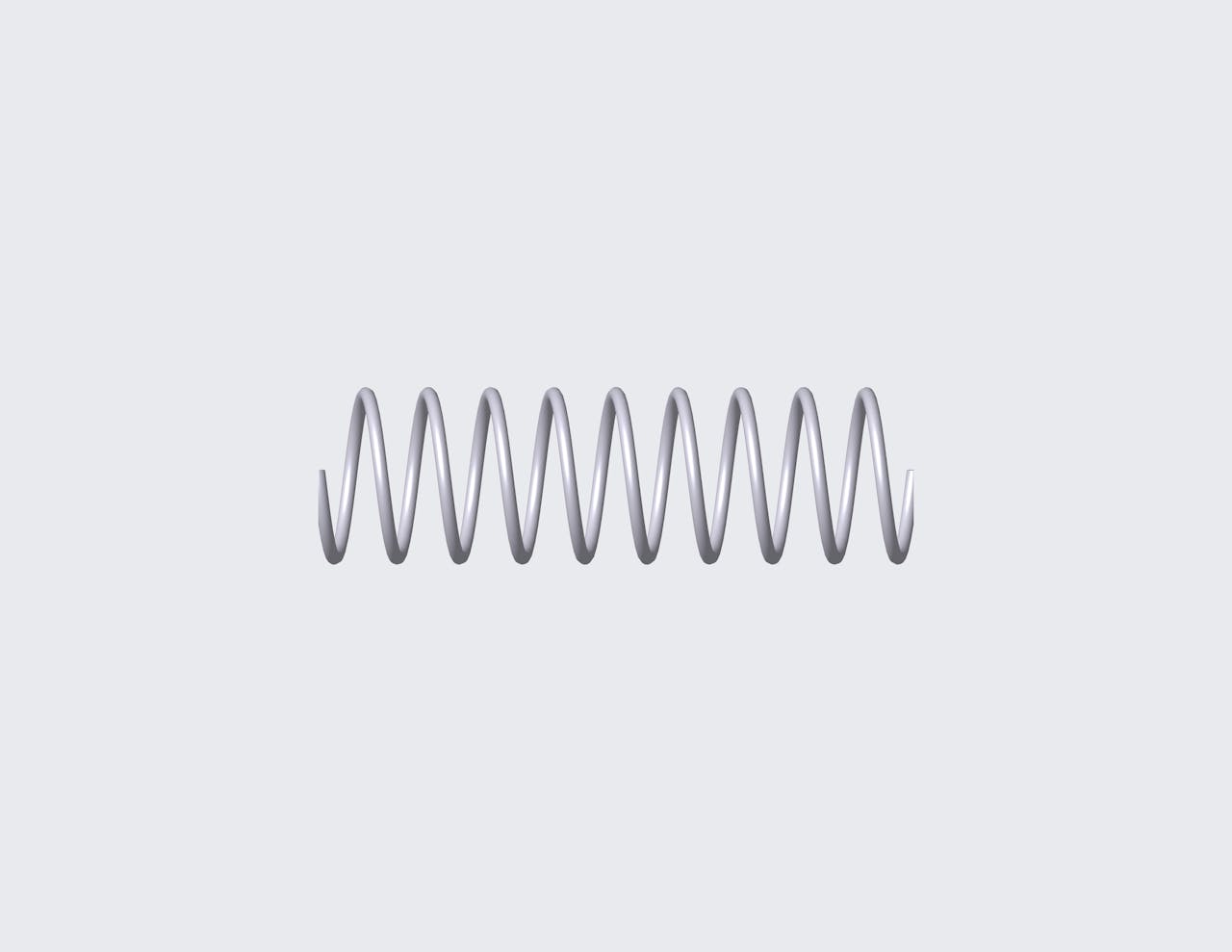

50609SCS - 2.559" 316 Stainless Steel Compression Spring

Inventory Status
Estimated Lead Time

Compression spring manufactured from 316 stainless steel with 9.3 coils and closed & ground ends. This spring features an O.D. of 0.765", and an I.D. of 0.645".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 50609S
Ends Closed & Ground
Finish Passivated
Free Length 2.559 in
Inside Diameter 0.645 in
Material 316 Stainless Steel
Outside Diameter 0.765 in
Rate 6.274 lbs/in
SKU 50609SCS
Solid Length 0.557 in
Suggested Max Deflection 1.305 in
Suggested Max Load 8.187 lbf
Total Coils 9.3
Wire Diameter 0.06 in
Specs (in metric)
Label Value
Brand Century Spring
Display Name 50609S
Ends Closed & Ground
Finish Passivated
Free Length 65 mm
Inside Diameter 16.38 mm
Material 316 Stainless Steel
Outside Diameter 19.43 mm
Rate 1.1 N/mm
SKU 50609SCS
Solid Length 14.15 mm
Suggested Max Deflection 33.15 mm
Suggested Max Load 36.42 N
Total Coils 9.3
Wire Diameter 1.52 mm
The 50609S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 316 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 50609SCS compression spring is designed with a free length of 2.165" total of 8.17 coils, and a rate of 7.424 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 50609S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
