TO-5176LCS - 270 Degree, 0.0387 Inch-Pounds per Degree Rate Music Wire Torsion Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

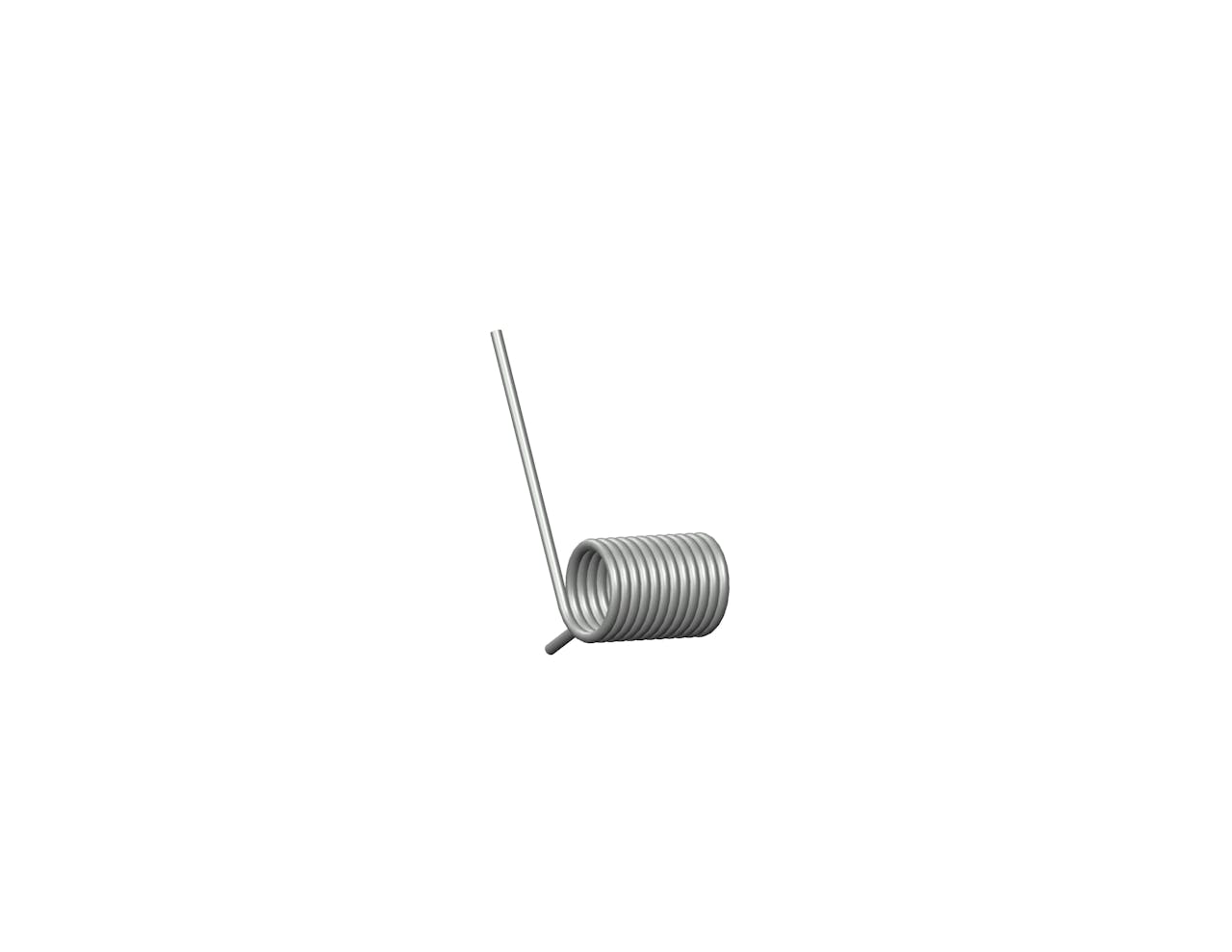

Torsion spring in Music Wire with 11.75 total coils and 2 Inch legs. This spring features an O.D. of 0.706 Inch, an I.D. of 0.55 Inch, and a spring rate of 0.0387 Inch-Pounds per Degree.
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 1.09 in |
| Brand | Century Spring |
| Display Name | TO-5176L |
| Finish | None |
| Inside Diameter | 0.55 in |
| Leg Length | 2 in |
| Mandrel Diameter | 0.44 in |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 231 |
| Max Torque (suggested) | 8.9 lbs/in |
| Measurement Units | Standard |
| Outside Diameter | 0.706 in |
| Rate | 0.0387 lbf-in/deg |
| SKU | TO-5176LCS |
| Total Coils | 11.75 |
| Wind Direction | Left |
| Wire Diameter | 0.078 in |
| Label | Value |
|---|---|
| Angle Between Legs | 270 deg |
| Body Length | 27.69 mm |
| Brand | Century Spring |
| Display Name | TO-5176L |
| Finish | None |
| Inside Diameter | 13.97 mm |
| Leg Length | 50.8 mm |
| Mandrel Diameter | 11.18 mm |
| Material | Music Wire |
| Max Deflection (deg) (suggested) | 231 |
| Max Torque (suggested) | 1.56 N-mm |
| Measurement Units | Standard |
| Outside Diameter | 17.93 mm |
| Rate | 4.37 N-mm/deg |
| SKU | TO-5176LCS |
| Total Coils | 11.75 |
| Wind Direction | Left |
| Wire Diameter | 1.98 mm |
