SM20C-SS - Stainless Steel M2 x 0.4 Threaded Stud
Stainless Steel M2 x 0.4 tapered threaded rod with a 0.143 Inch outside diameter and insert height of 0.157 Inch.

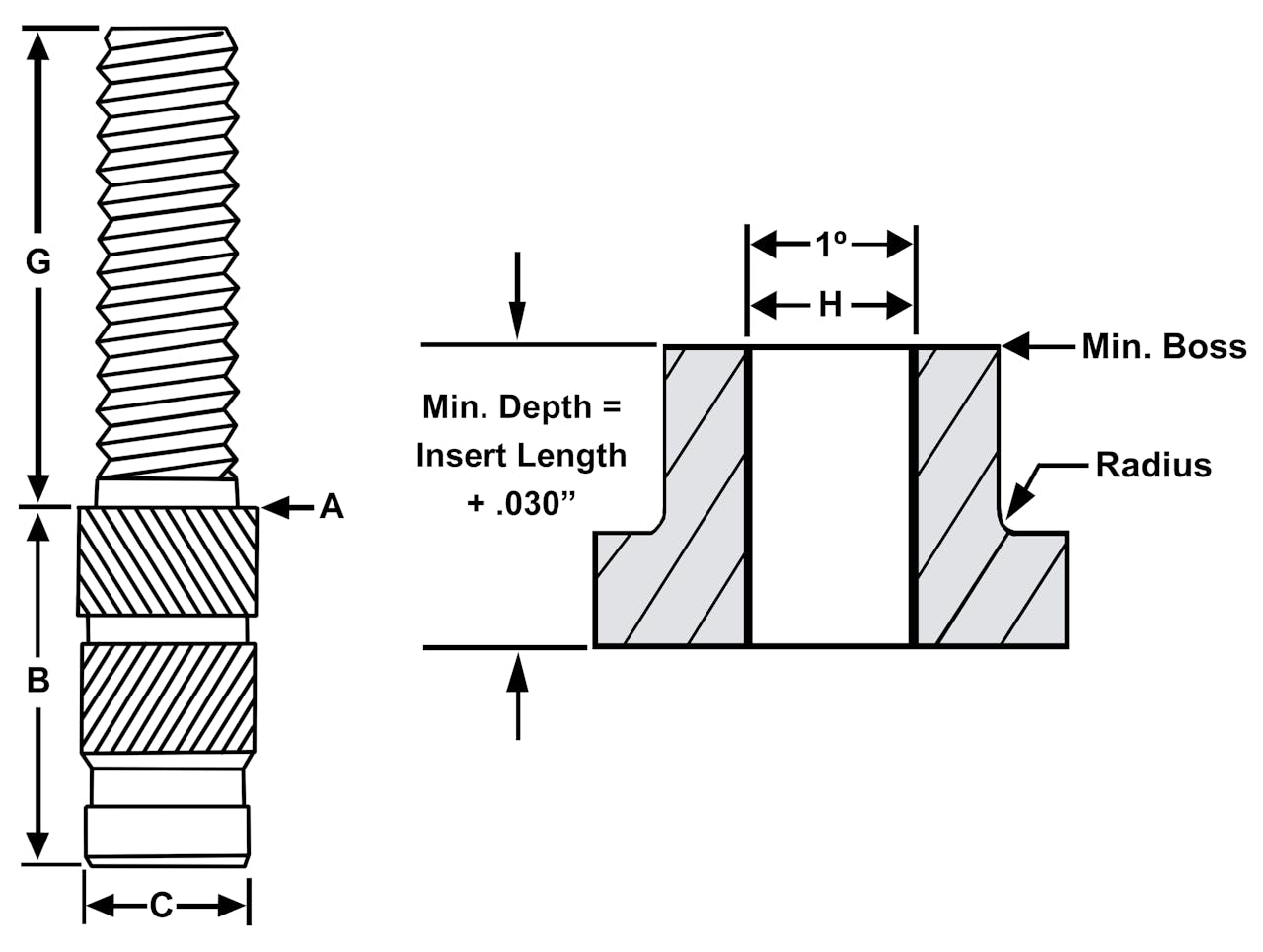

| Label | Value |
|---|---|
| A | 0.143 in |
| B | 0.157 in |
| Boss Size | 0.252 in |
| Brand | RAF |
| C | 0.123 in |
| Display Name | SM20C-SS |
| Finish | None |
| G | 0.25 in |
| H | 0.126 in |
| Material | Stainless Steel |
| Max G | 1.5 in |
| Series | SC |
| Thread Size | M2 x 0.4 |
| Label | Value |
|---|---|
| A | 3.63 mm |
| B | 3.99 mm |
| Boss Size | 6.4 mm |
| Brand | RAF |
| C | 3.12 mm |
| Display Name | SM20C-SS |
| Finish | None |
| G | 6.35 mm |
| H | 3.2 mm |
| Material | Stainless Steel |
| Max G | 38.1 mm |
| Series | SC |
| Thread Size | M2 x 0.4 |
