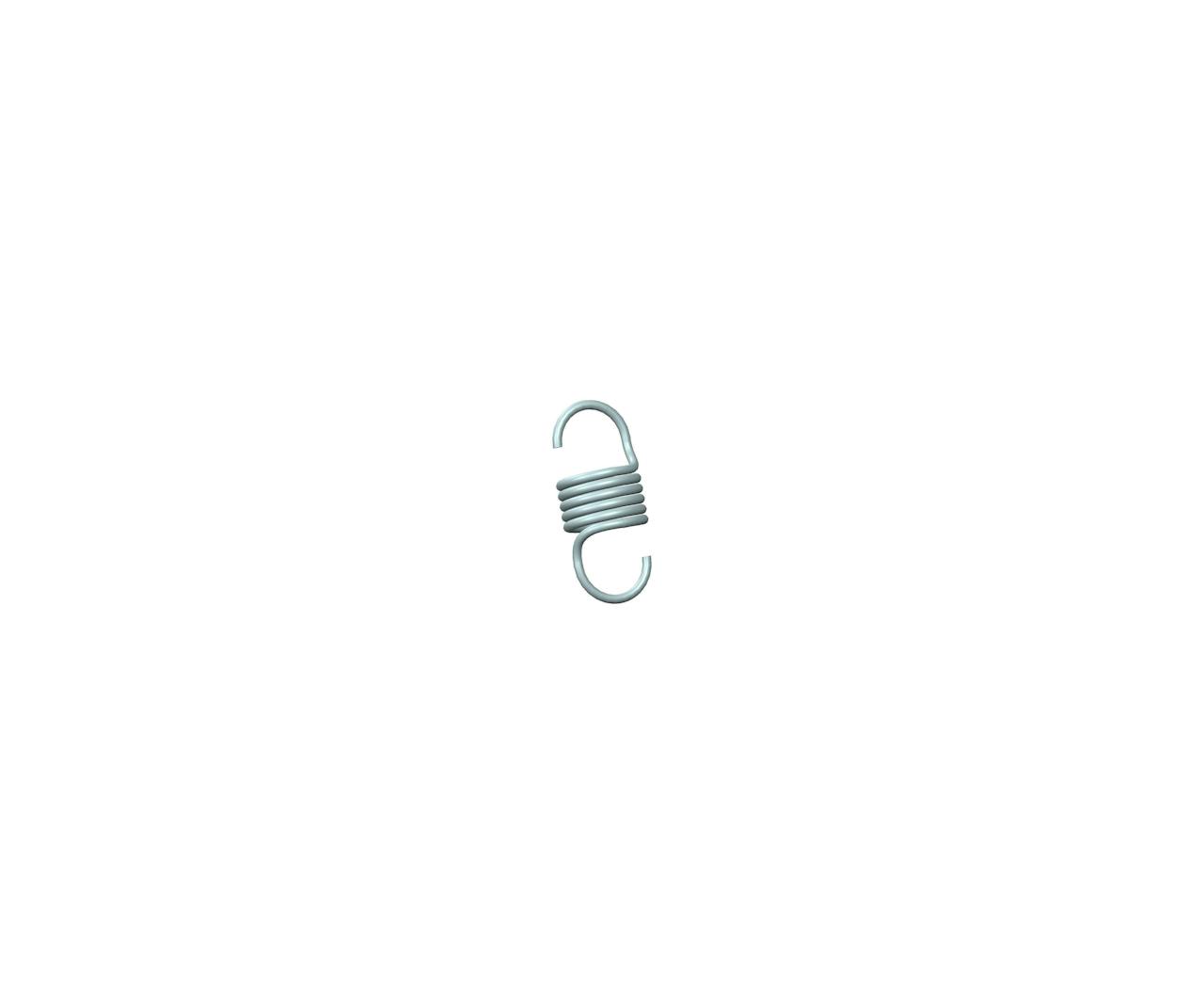

90379SCS - 0.63 Inch 316 Stainless Steel Extension Spring

Inventory:
Estimated Lead Time

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 0.46 Pound.

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 90379S
Ends Machine Hook
Finish Passivated
Initial Tension 0.46 lb
Length 0.63 in
Material 316 Stainless Steel
Outside Diameter 0.25 in
Part Type Standard
Rate 10.91 lbs/in
SKU 90379SCS
Sugg Max Deflection 0.096 in
Sugg Max Load 1.51 lbf
Wire Diameter 0.029 in
