Shop Online > Springs > Extension > Regular
90334SCS - 0.63 Inch 316 Stainless Steel Extension Spring
|
Inventory:
|
|
| Estimated Lead Time | |
|---|---|

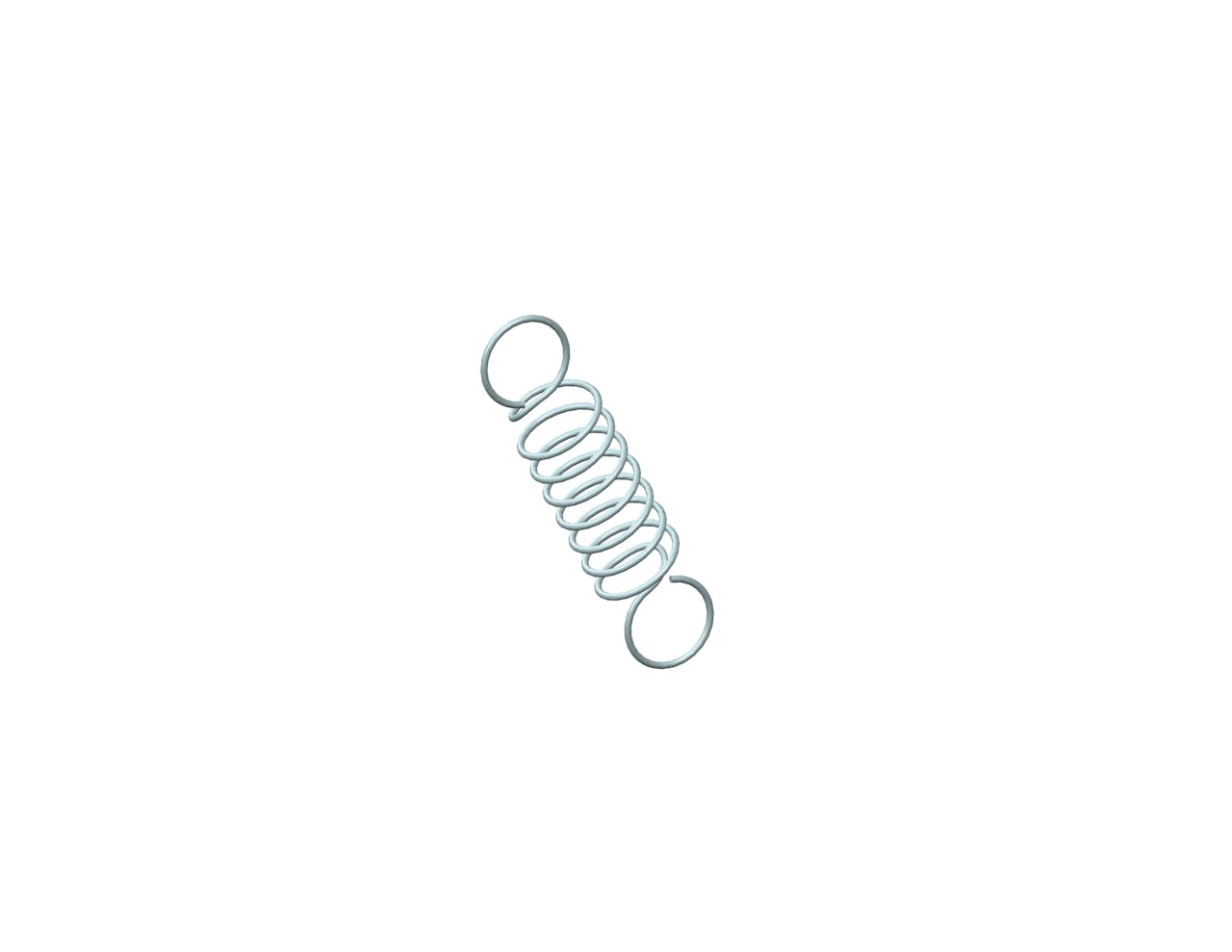

Regular extension spring in 316 Stainless Steel. This spring features an O.D. of 0.25 Inch and an initial tension of 0.08 Pound.
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 90334S |
| Ends | Full Loop |
| Finish | Passivated |
| Initial Tension | 0.08 lb |
| Length | 0.63 in |
| Material | 316 Stainless Steel |
| Outside Diameter | 0.25 in |
| Part Type | Standard |
| Rate | 1.06 lbs/in |
| SKU | 90334SCS |
| Sugg Max Deflection | 0.285 in |
| Sugg Max Load | 0.39 lbf |
| Wire Diameter | 0.018 in |
| Label | Value |
|---|---|
| Brand | Century Spring |
| Display Name | 90334S |
| Ends | Full Loop |
| Finish | Passivated |
| Initial Tension | 0.04 kg |
| Length | 16 mm |
| Material | 316 Stainless Steel |
| Outside Diameter | 6.35 mm |
| Part Type | Standard |
| Rate | 0.19 N/mm |
| SKU | 90334SCS |
| Sugg Max Deflection | 7.24 mm |
| Sugg Max Load | 1.73 N |
| Wire Diameter | 0.46 mm |
