75617SCS - 1.181" 302/304 Stainless Steel Compression Spring

Inventory:
Estimated Lead Time

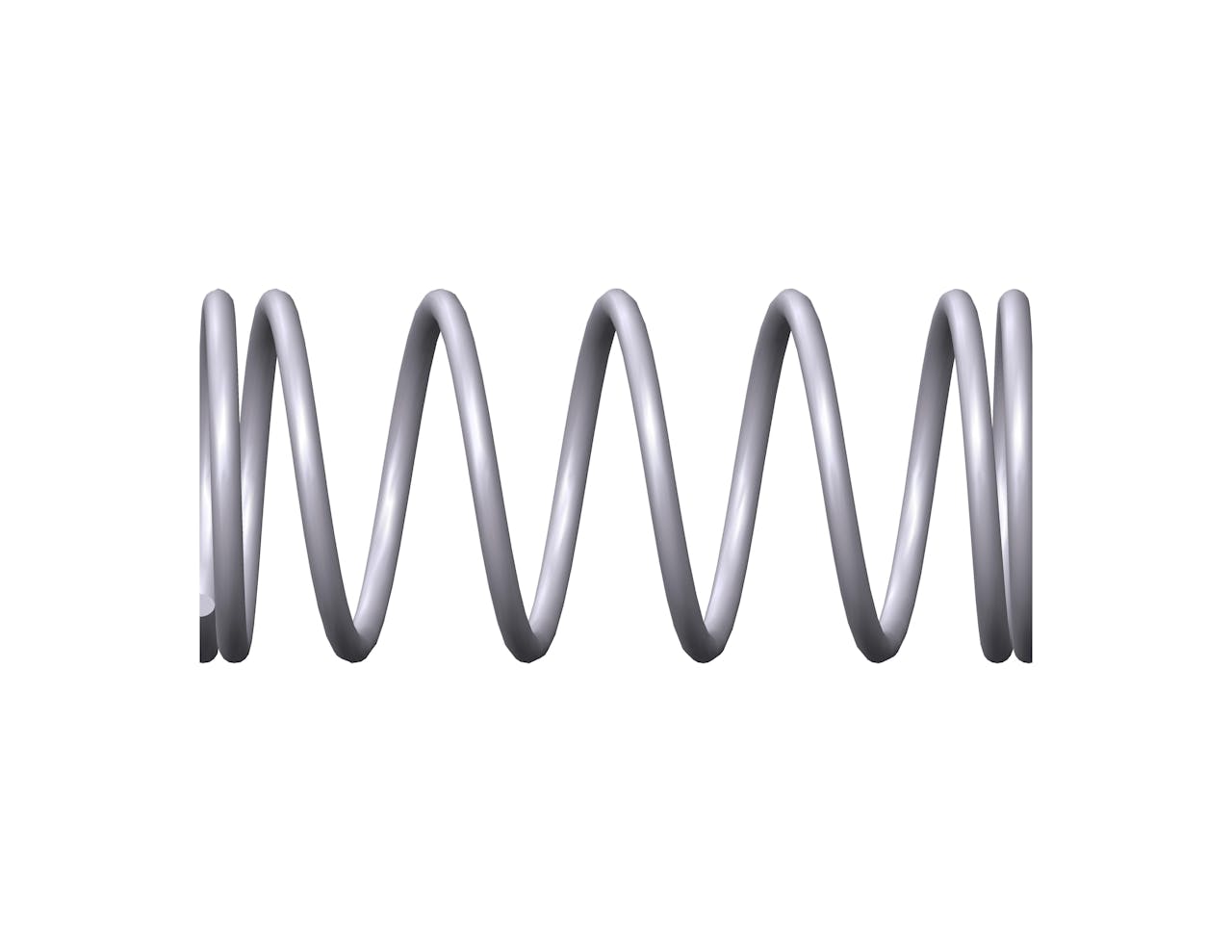

Compression spring manufactured from 302/304 stainless steel with 7.23 coils and closed & ground ends. This spring features an O.D. of 0.532", and an I.D. of 0.446".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75617S
Ends Closed & Ground
Finish None
Free Length 1.181 in
Inside Diameter 0.446 in
Material 302/304 Stainless Steel
Outside Diameter 0.532 in
Part Type Metric
Rate 7.197 lbs/in
SKU 75617SCS
Solid Length 0.314 in
Suggested Max Deflection 0.746 in
Suggested Max Load 5.369 lbf
Total Coils 7.23
Wire Diameter 0.043 in
The 75617S compression spring is engineered for optimal performance in demanding applications. Constructed from high-quality 302/304 stainless steel and designed with precision and durability in mind, this spring is an essential component for a variety of mechanical systems where reliable force and resilience are paramount.

The 75617SCS compression spring is designed with a free length of 1.181" total of 7.23 coils, and a rate of 8.64 lbs/in providing a balanced combination of flexibility and strength. This spring coil, and its closed & ground end configuration allows for efficient energy storage and release, making it suitable for applications requiring precise motion control.

The 75617S spring design is ideal for use in industrial machinery, automotive systems, and various mechanical assemblies where reliable force application is crucial. Its robust construction and thoughtful design make it a dependable choice for engineers seeking a high-performance spring solution.
