75542CS - 1.575" Music Wire Compression Spring

Inventory:
Estimated Lead Time

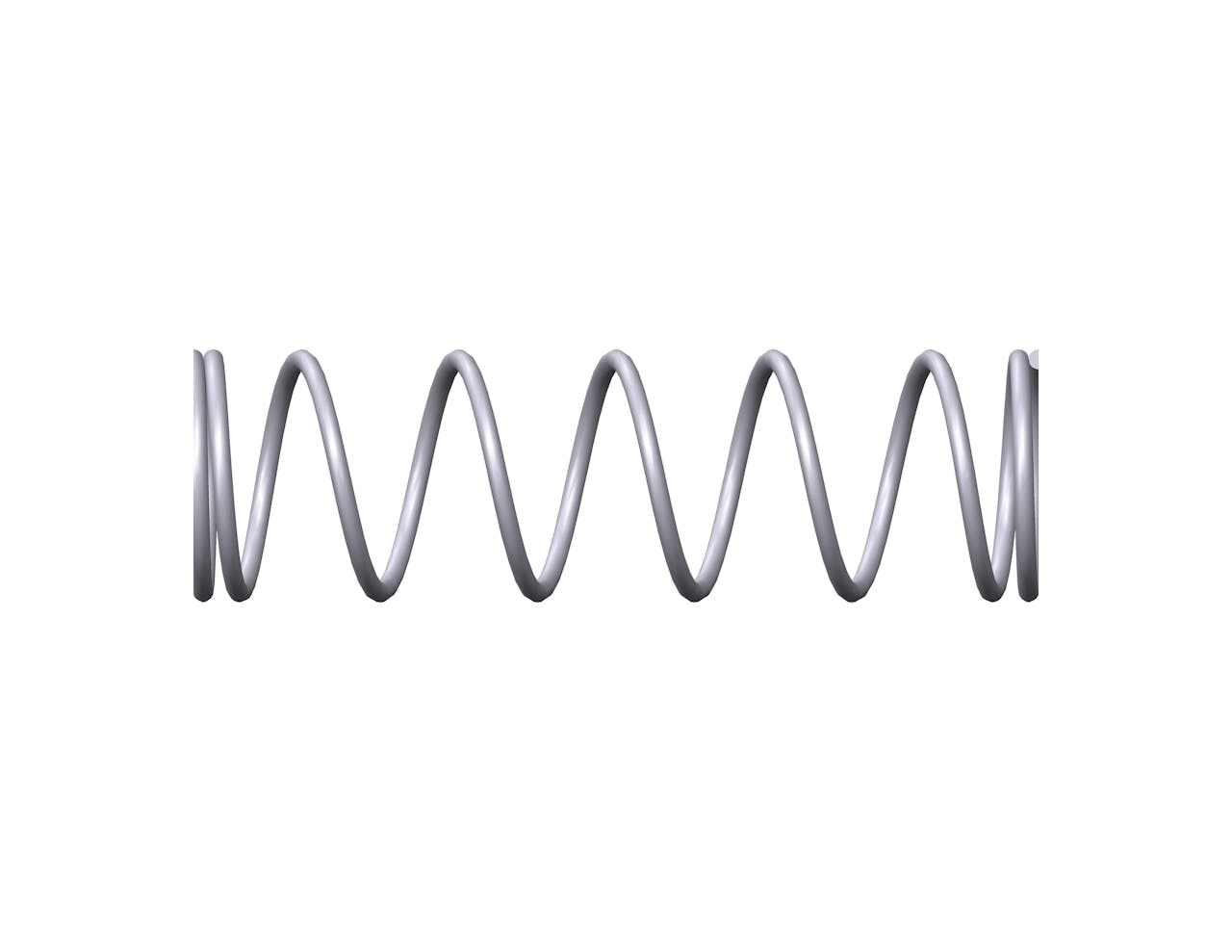

Compression spring manufactured from music wire with 7.99 coils and closed & ground ends. This spring features an O.D. of 0.472", and an I.D. of 0.398".

Download CAD
Unit System
Specs (in standard)
Label Value
Brand Century Spring
Display Name 75542
Ends Closed & Ground
Finish Zinc
Free Length 1.575 in
Inside Diameter 0.398 in
Material Music Wire
Outside Diameter 0.472 in
Part Type Metric
Rate 5.7 lbs/in
SKU 75542CS
Solid Length 0.307 in
Suggested Max Deflection 1.029 in
Suggested Max Load 5.865 lbf
Total Coils 7.99
Wire Diameter 0.037 in
The compression spring 75542CS is an essential component designed for applications requiring reliable force and energy storage. Crafted from high-quality music wire, the 75542 compression spring design exhibits exceptional tensile strength and resilience.

The 75542 design is manufactured with a free length of 1.575", with an outer diameter of 0.472", an inner diameter of 0.398", and a total of 7.99 coils, expertly designed to deliver consistent compression characteristics including a rate of 5.7 lbs/in.

The 75542CS compression spring is ideally suited for use in a wide range of mechanical assemblies, including but not limited to automotive suspension systems, industrial machinery, and electronic devices.

In summary, the compression spring 75542 design stands out for its superior material properties, thoughtful design, and versatility in application. It is a prime choice for engineers committed to excellence and innovation in their projects.
